URBAN EM70 with conveyor 2,6 m

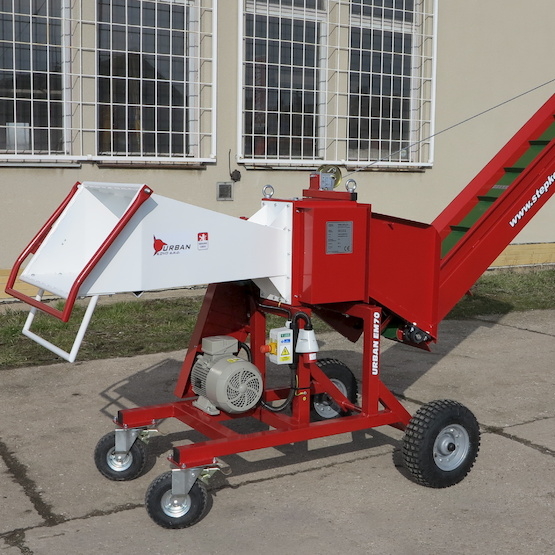

The Branch Logger URBAN EM70  is driven by a three phase 5,5 kW SIEMENS electric motor. The motor´s output is transferred via V-belts to the oil filled gearbox which drives the blade rotors. The logger has 4 wheels for manual handling (2 fixed and 2 swivelling with brakes).

UP TO DIAMETER 80 MM

Part of the machine is: operators manual including declaration of conformity.

  • Category: URBAN EM70
  • Model series:70
  • Catalogues code:EM70 D2,6
  • Offered from:24.02.2017
  • Availability :within 4 weeks

Product variants

Photo Variant
URBAN EM70 with simple bagging within 4 weeks
URBAN EM70 with conveyor 2,1 m within 4 weeks
URBAN EM70 with Big-Bag bagging within 4 weeks
URBAN EM70 with folding belt conveyor 3,4 m within 4 weeks
URBAN EM70 with double bagging within 4 weeks
Weight (kg): 442
Max. diameter of soft freshwood (pine): 80 mm
Max. diameter of fresh hardwood (oak, hornbeam): 65 mm
Max. diameter of dry hardwood (oak, hornbeam): 50 mm
Max. diamensions of block of wood (spruce): 60 x 60 mm
Max. diameter of wooden board (spruce): 190 x 20 mm
Log length (not adjustable): 6 - 13 cm
Logging device inlet dimensions: 200 x 200 mm
Inlet hopper dimensions: 700 x 400 mm
Top performance: 4 m3/h
Engine power: 5,5 kW
Number of logging blades: 6
The gap between the blade of the cutting blades: approx. 0,1 mm
Lifetime of blades per one grinding: 100 - 500 m3 of small logs
Overload protection: Slip + thermal protection
Dimensions (length x width x height): 205x97x150 cm
Logs output: Double bagging
Videos from Youtube:

The electric motor

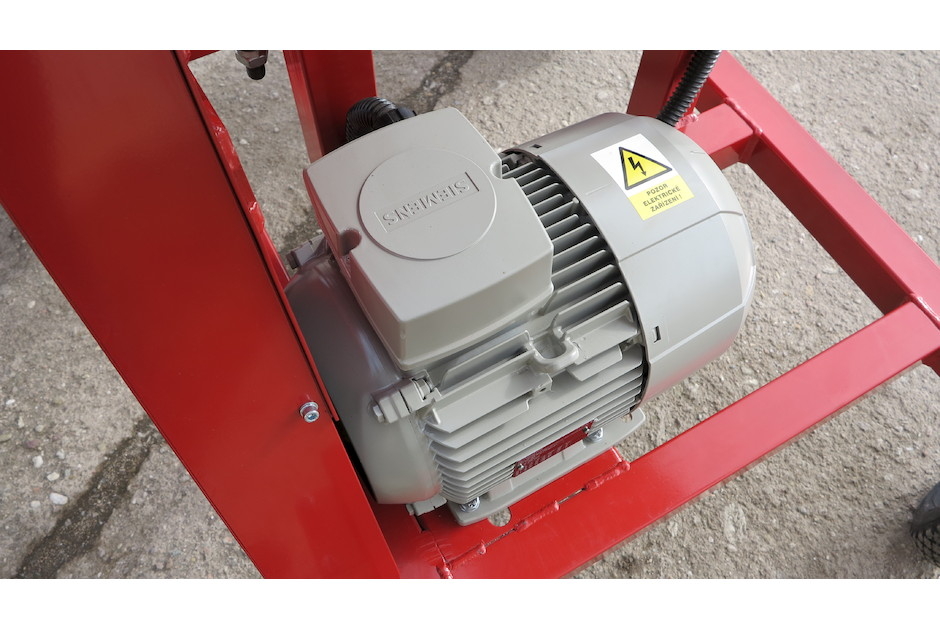

The drive is powered by a three-phase electric motor SIEMENS with a power output of 5.5 kW (rated current 11 A, socket 16 A). The motor´s output is transferred via V-belts to the oil filled gearbox which drives the blade rotors.  Upon request, a logger can be equipped by hour meter.



The Machine handling

The logger is equipped for ease of handling by handle on the hopper and by 4 wheels for manual handling. (2 fixed and 2 swivelling with brakes).



The belt conveyor

It is used a 2,6 m long belt conveyor driven by V-belt. The conveyor slope is adjustable by a winch. The conveyor is lifted to the vertical position during transport. It is possible to install on the end of conveyor following accessories: the 0,8 m slide or a double bagging device with a support leg. The bagging device is secured by four screws and it takes only a few minutes to fit it.



The inlet hopper

The hopper is long enough to provide safety and is equipped with a safety shut-off frame, which by pressing down stops the engine. The inlet hopper is oriented horizontally, which greatly facilitates insertion of long branches compared to the vertical or sloping hopper. Surface treatment of the whole machine is made with powder paint.



The Overload protection

The logger is protected against overloading by the thermal protection of motor and by disc springs located on the torsion arm, which when compressed allow the belt to slip and stop the logger. If they do, the knife blades will be usually bite in the branch and can not be freely removed from the hopper. The supplied lever is used to release it. Release the branch by clockwise lever rotating.



The chipping device

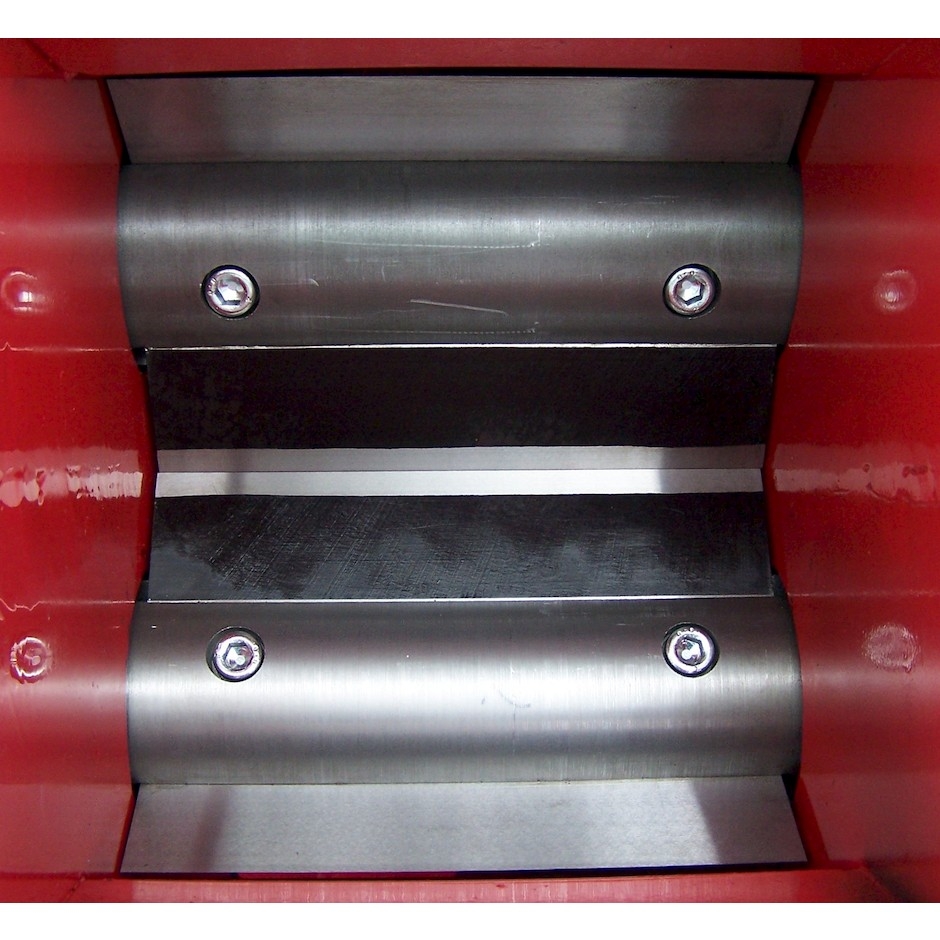

The working principle of branch loggers URBAN lies in two counter rotating shafts with knives. The rotating knives draw in the wood material into the feed hopper unassisted. The passage gap between the shafts is 70 mm. Each shaft has 3 fixed knives, made from high quality tool steel. It is possible to resharpen the knives repeatedly. After sharpening there is a pad to be put under the knives in order to keep the same gap between the knives (c. 0,1 mm). One single sharpening of knives is capable of producing from 100 to 500 solid meters of small logs, depending the level of contaminants (mud, nails, stones etc.). Each blade can be sharpened up about 4 mm, then it must be replaced with a new one.
