URBAN HM70 with double bagging

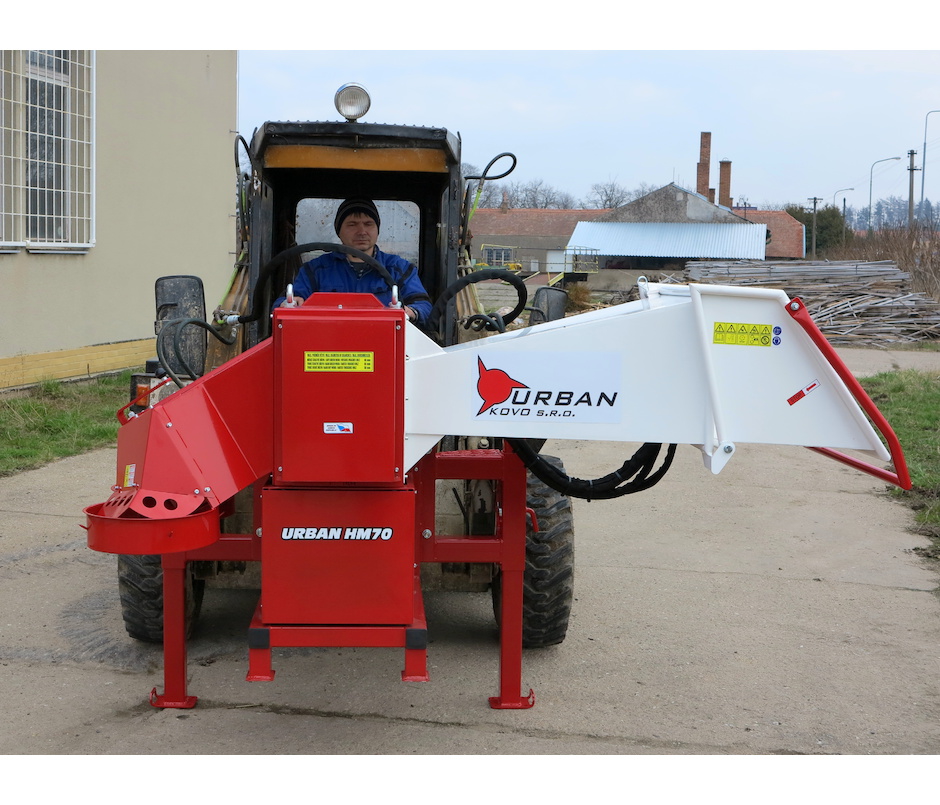

The branch logger URBAN HM70 is driven by a hydraulic motor. It processes material with a diameter of up to 8 cm and the resulting logs length is 6 - 13 cm. The source of hydraulic oil is the hydraulic power unit to which the machine is connected via the connecting frame and 2 hydraulic quick couplings. We produce various types of connecting frames, making it possible to attach a branch logger to a wide range of hydraulic power units such as skid steer loaders, farm manipulators, construction or communal machines. The connecting frame is an accessories

UP TO DIAMETER 80 MM

Part of the machine is: 50 pcs of raschle bags, operators manual including declaration of conformity.

  • Category: URBAN HM70
  • Model series:70
  • Catalogues code:HM 70 2P
  • Offered from:19.05.2017
  • Availability :within 2 weeks
Weight: 420 kg
Max. diameter of soft freshwood (pine): 80 mm
Max. diameter of fresh hardwood (oak, hornbeam): 65 mm
Max. diameter of dry hardwood (oak, hornbeam): 50 mm
Max. diamensions of block of wood (spruce): 60 x 60 mm
Max. diameter of wooden board (spruce): 190 x 20 mm
Log length (not adjustable): 6 - 13 cm
Logging device inlet dimensions: 200 x 200 mm
Inlet hopper dimensions: 700 x 400 mm
Blade rotation speed (rpm): 250 / min.
Oil flow rate: 40 l / min.
Top performance: 40 bags per hour
Nominal oil pressure: 18 MPa
Sliding legs: Yes
Number of logging blades: 6
The gap between the blade of the cutting blades: approx. 0,1 mm
Lifetime of blades per one grinding: 100 - 500 m3 of small logs
Overload protection: Pressure valve
Dimensions in working position (length x width x height): 102 x 225 x 115 cm
Dimensions in transport position (length x width x height): 102 x 179 x 123 cm
Logs output: Double bagging

The connection to hydraulic power unit

The machine is attached to the hydraulic power unit and its hydraulic circuit. Required parameters of the hydraulic circuit of the power means are: oil flow rate min. 40 l/min (optimally 50 l / min or more) and oil pressure min. 18 MPa.

The machine is controlled by the hydraulic distributor lever. From optional accessories you can add the flow regulator, which adjusts the speed of the chipping device.

The connecting frame

The connecting frame must be mounted on the device. It is supplied as an accessory. The connection frame is used to connect the device to the hydraulic power. We supply different types of connecting frames for different hydraulic power unit (EURO NORM, UNC 60, 3-point hitch, …). The 2 front sliding legs are part of the connecting frame, which serves to ensure the optimum working height during chipping (the other 2 rear sliding legs are part of the branch logger frame).

The inlet hopper

The inlet hopper consists of a fixed and a folding part. The folding part of the inlet hopper gives a narrower profile in the transport position. Once locked in the working position the hopper ensures optimised branch intake and operational safety. Additionally, the hopper is fitted with a safety cut-out frame, which by pressing down stops the chipping device. The inlet hopper is oriented horizontally, which greatly facilitates insertion of long branches compared to the vertical or sloping hopper. Surface treatment of the whole machine is made with powder paint.

The double bagging for raschle bags

It is used raschle bags of 57 × 104 cm. The flap can be switched between filling one or the other bag. After filling the first bag, there is no need to interrupt the job due to a full bag - just flip the flap and the chips fall further into the second empty bag. During the filling of the second bag it is possible to replace the first, already full bag. Continuous insertion of the branches allows to fill bag in 20 seconds. Optimal for the operator of the machine are 2-3 persons, one of them only changing the bags. We provide 50 pcs of raschle bags free of charge with each machine.

The overload protection

The logger is equipped by its own pressure valve. When a too strong branch is inserted, the logger system stops. If this happens, the control lever is switched to STOP position and then briefly to the REVERSE position to release the branch from the  logger. It is possible to continue working immediately after switching the lever to the START position.

The chipping device

The working principle of branch loggers URBAN lies in two counter rotating shafts with knives. The rotating knives draw in the wood material into the feed hopper unassisted. The passage gap between the shafts is 70 mm. Each shaft has 3 fixed knives, made from high quality tool steel. It is possible to resharpen the knives repeatedly. After sharpening there is a pad to be put under the knives in order to keep the same gap between the knives (c. 0,1 mm). One single sharpening of knives is capable of producing from 100 to 500 solid meters of small logs, depending the level of contaminants (mud, nails, stones etc.). Each blade can be sharpened up about 4 mm, then it must be replaced with a new one.



If you have a question about this product, do not hesitate to ask.

Items marked * are required.

Product variants

URBAN HM70 with conveyor 2,1 m within 2 weeks
URBAN HM70 with conveyor 2,6 m within 2 weeks
URBAN HM70 with Big-Bag bagging within 2 weeks

Optional accessories

Bags for logs
