URBAN SM110 with double bagging

The branch logger URBAN SM110 is powered by a 35 hp Briggs & Stratton VANGUARD engine. The SM110 is mounted on a solid frame and is designed for stationary use. This model is very ideal for processing waste material (boards up to width 280 mm, cut-offs) and also smaller stems up to 12 cm diameter. The final length of chips is 7 -22 cm.

UP TO DIAMETER 120 MM

Part of the machine is: 50 pcs of raschle bags, electric starter of motor including battery, hour meter, operators manual including declaration of conformity

Category: URBAN SM110
Model series:110
Catalogues code:SM110 2P
Offered from:05.02.2021
Availability :within 4 weeks

Product variants

Photo	Variant
	URBAN SM110 with conveyor 2,6 m within 4 weeks
	URBAN SM110 with Big-bag bagging within 4 weeks
	URBAN SM110 with folding conveyor 4,1 m within 4 weeks

Weight (kg): 850

Max. diameter of soft freshwood (pine): 120 mm

Max. diameter of fresh hardwood (oak, hornbeam): 100 mm

Max. diameter of dry hardwood (oak, hornbeam): 80 mm

Max. diamensions of block of wood (spruce): 100 x 100 mm

Max. diameter of wooden board (spruce): 280 x 40 mm

Log length (not adjustable): 7 - 22 cm

Logging device inlet dimensions: 290 x 290 mm

Inlet hopper dimensions: 800 x 600 mm

Blade rotation speed (rpm): 170 / min.

Top performance: 10 m3/h

Engine power: 26,1 kW (35 hp)

Fuel: Unleaded fuel (95)

Fuel tank volume: 15 l

Average gas consumption: 3 - 4 l/h

Electric start of motor: Yes

Hour meter + tachometer: Yes

Number of logging blades: 6

The gap between the blade of the cutting blades: approx. 0,1 mm

Lifetime of blades per one grinding: 150 - 800 m3 of of small logs

Overload protection: Belt slip

Dimensions (length x width x height): 256 x 150 x 170 cm

Logs output: Double bagging

The engine

The SM110 is driven by a 35 hp Briggs & Stratton VANGUARD engine with electric start, an oil level and fuel indicators and an hour meter. The fuel tank capacity is 15 litres. The engine´s output is transferred via V-belts to the oil filled gearbox which drives the blade rotors.

The frame

The SM110 is designed for stationary using. The machine frame has 4 rigid legs and its lower part is adapted for forklift trucks. Two suspension lugs at the top of the machine can also be used for handling.

The inlet hopper

The hopper is long enough to provide safety and is equipped with a safety shut-off frame, which by pressing down stops the engine. The inlet hopper is oriented horizontally, which greatly facilitates insertion of long branches compared to the vertical or sloping hopper. Surface treatment of the whole machine is made with powder paint.

The double bagging for raschle bags

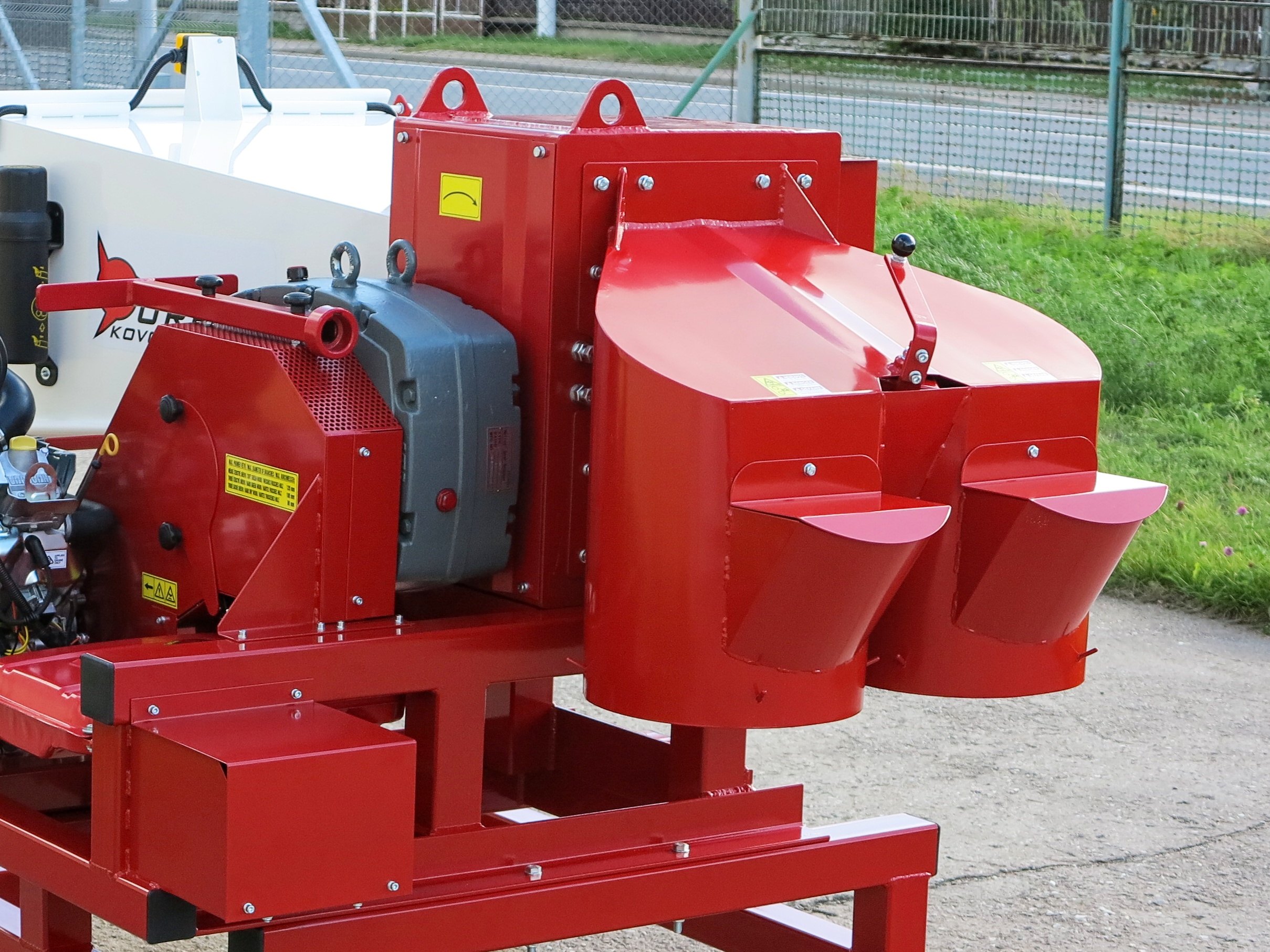

It is used raschle bags of 57 × 104 cm. The flap can be switched between filling one or the other bag. After filling the first bag, there is no need to interrupt the job due to a full bag - just flip the flap and the chips fall further into the second empty bag. During the filling of the second bag it is possible to replace the first, already full bag. Continuous insertion of the branches allows to fill bag in 20 seconds. Optimal for the operator of the machine are 2-3 persons, one of them only changing the bags. We provide 50 pcs of raschle bags free of charge with each machine.

The overloading protection

A belt slip protects the device from overloading. If a too strong branch is inserted, the belt will be slipped and the engine stopped. If they do, the knife blades will usually be bite in the branch and can not be freely removed from the hopper. The supplied lever is used to release it. Release the branch by clockwise lever rotating.
