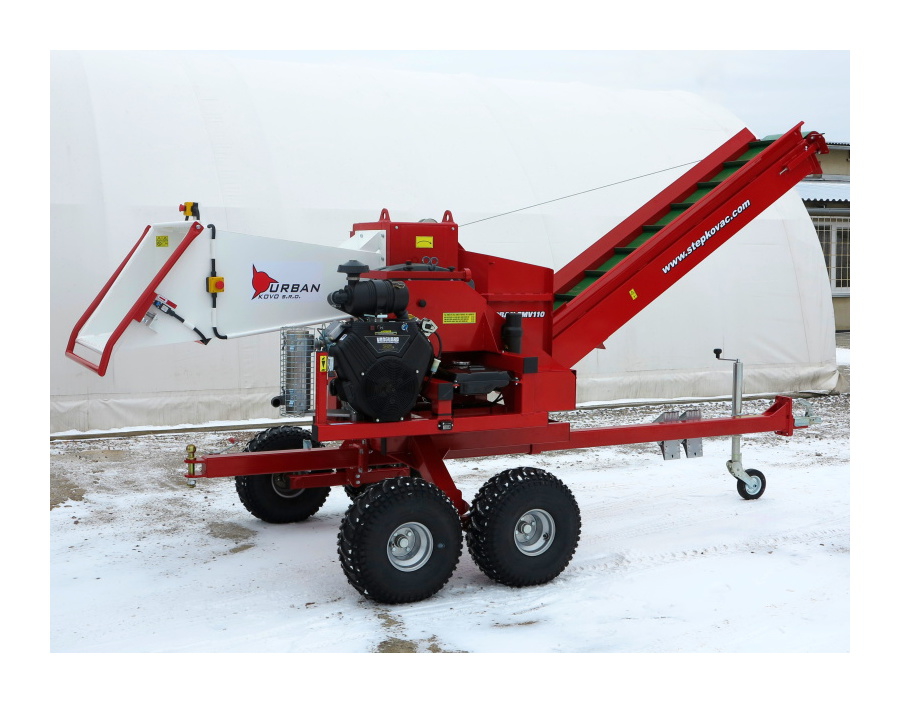

URBAN SMV110 with conveyor 2,6 m

The engine

The SMV 110 is driven by a 35 hp Briggs & Stratton VANGUARD engine with electric start, an oil level and fuel indicators and an hour meter. The fuel tank capacity is 15 litres. The engine´s output is transferred via V-belts to the oil filled gearbox which drives the blade rotors.

The chassis

The logger has off road chassis that is able to overcome larger terrain inequalities thanks independent pivoting axles. There is a one pull-out wheel in front of the trailer and adjustable leg at the back side of trailer. The centre of gravity of the machine is slightly before the axle. Connects to a vehicle with a 50 mm dia. tow ball or with 35 mm dia. towing eye. It is possible to attach a small trailer to a classical hinge or to 50 mm diameter tow ball. The SMV110 is not intended for a highway use.

The turntable

The branch logger is fixed to a 360° turntable to allow the branch logger to be rotated in eight lockable positions in 45° increments.

The inlet hopper

The hopper is long enough to provide safety and is equipped with a safety shut-off frame, which by pressing down stops the engine. The inlet hopper is oriented horizontally, which greatly facilitates insertion of long branches compared to the vertical or sloping hopper. Surface treatment of the whole machine is made with powder paint.

Belt conveyor

The conveyor is driven by V-belt drive. The slope of the conveyor is adjustable by means of a winch. The conveyor is lifted to a vertical position during transport.  As an optional accessory, it is possible to mount a slide with length 1m or double bagging device with a support leg at the end of the conveyor or. The bagging device is secured by four screws and it takes only a few minutes to fit it.

The overloading protection

A belt slip protects the device from overloading. If a too strong branch is inserted, the belt will be slipped and the engine stopped. Pokud se tak stane, zůstanou obvykle nože štěpkovače zakousnuté ve větvi a ta tím If they do, the knife blades will usually be bite in the branch and can not be freely removed from the hopper. The supplied lever is used to release it. Release the branch by clockwise lever rotating.

The chipping device
