URBAN SM70 with Big-Bag bagging
The Branch Logger URBAN SM70 is driven by a 10 hp Briggs & Stratton VANGUARD engine. The engine´s output is transferred via V-belts to the oil filled gearbox which drives the blade rotors. The logger has
4 wheels for manual handling (2 fixed and 2 swivelling with brakes).
UP TO DIAMETER 80 MM
Part of the machine is: operators manual including declaration of conformity.
- Category: URBAN SM70
- Model series:70
- Catalogues code:SM70 BB
- Offered from:08.02.2017
- Availability :within 1 week
The SM70 is driven by a four stroke 10 hp Briggs & Straton VANGUARD engine, with pull cord or optional electric starter. The engine´s output is transferred via V-belts to the oil filled gearbox which drives the blade rotors. The fuel tank capacity is 4 litres. Upon request, a logger can be equipped by hour meter.
The Machine handling
The logger is equipped for ease of handling by handle on the hopper and by 4 wheels for manual handling. (2 fixed and 2 swivelling with brakes).
The Big-Bag bagging device

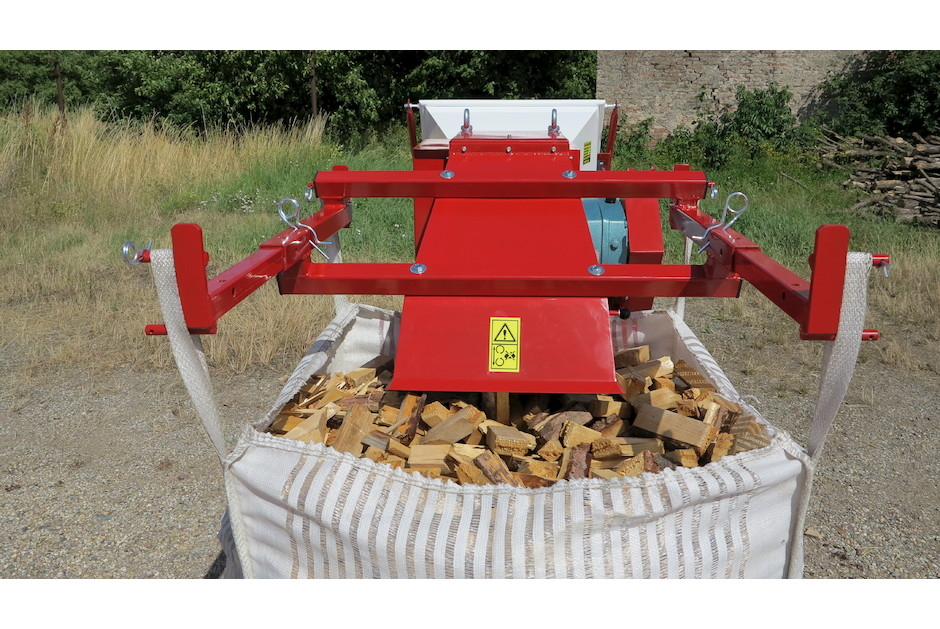

It is used aerated large-size bags of 90 x 90 x 100 cm. The Big-Bag using is faster because bags do not have to be changed so often compared to smaller raschle bags. The adjustable arms of bagging device are retractable.
The inlet hopper
The hopper is long enough to provide safety and is equipped with a safety shut-off frame, which by pressing down stops the engine. The inlet hopper is oriented horizontally, which greatly facilitates insertion of long branches compared to the vertical or sloping hopper. Surface treatment of the whole machine is made with powder paint.
The Overload protection
If you put too large branch in the chipping-device, V-belts slip shortly and the engine stops. This is the way how to protect the branch logger against overload. When this situation happens, it´s usually impossible to take the branch outside of the chipping-device, because knives are jammed in the branch. In this situation, make sure the engine can not start itself, put away the small round cover of V-belts and turn over with the sheave clockwise until the branch is out of the chipping device. Then, please put the cover back on the place.
The chipping device
The working principle of branch loggers URBAN lies in two counter rotating shafts with knives. The rotating knives draw in the wood material into the feed hopper unassisted. The passage gap between the shafts is 70 mm. Each shaft has 3 fixed knives, made from high quality tool steel. It is possible to resharpen the knives repeatedly. After sharpening there is a pad to be put under the knives in order to keep the same gap between the knives (c. 0,1 mm). One single sharpening of knives is capable of producing from 100 to 500 solid meters of small logs, depending the level of contaminants (mud, nails, stones etc.). Each blade can be sharpened up about 4 mm, then it must be replaced with a new one.
|URBAN SM70 with simple bagging within 1 week|
|URBAN SM70 with conveyor 2,1 m within 2 weeks|
|URBAN SM70 with conveyor 2,6 m within 2 weeks|
|URBAN SM70 with folding conveyor 3,4 m within 2 weeks|
|URBAN SM70 with double bagging within 2 weeks|
