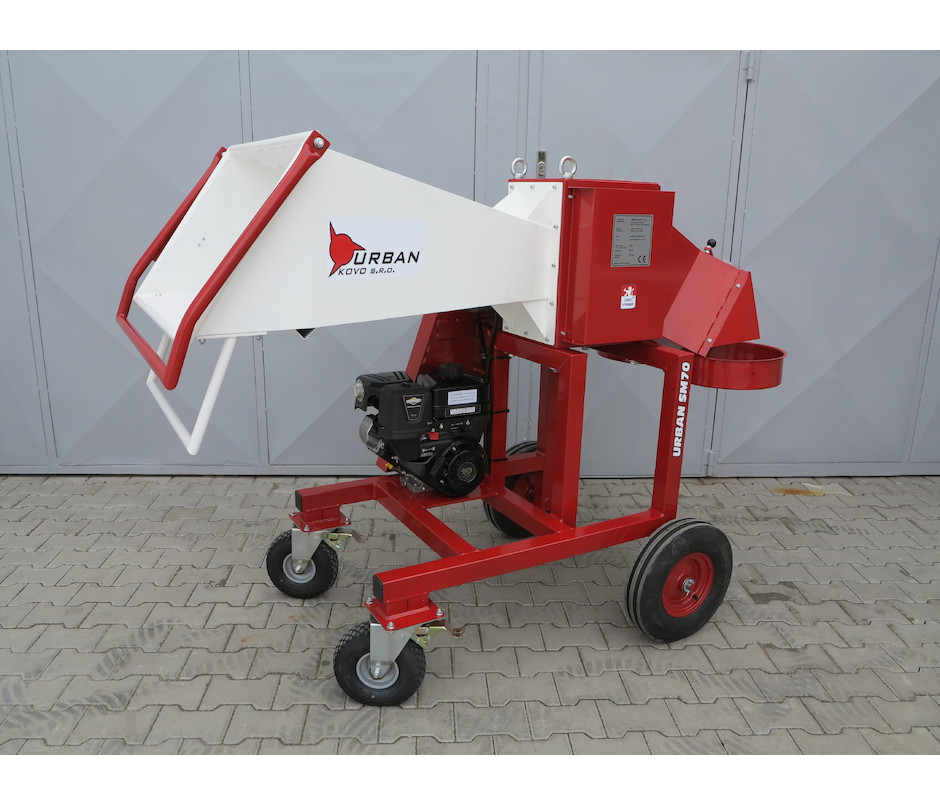

URBAN SM70 with double bagging

The Branch Logger URBAN SM70  is driven by a 10 hp (optionally 14 hp) Briggs & Stratton VANGUARD engine. The engine´s output is transferred via V-belts to the oil filled gearbox which drives the blade rotors. The logger has

4 wheels for manual handling (2 fixed and 2 swivelling with brakes).


Part of the machine is: 50 pcs of raschle bags, operators manual including declaration of conformity.

  • Category: URBAN SM70
  • Model series:70
  • Catalogues code:SM70 2P
  • Offered from:03.02.2017
  • Availability :within 10 weeks
Weight: 320 kg
Max. diameter of soft freshwood (pine): 80 mm
Max. diameter of fresh hardwood (oak, hornbeam): 65 mm
Max. diameter of dry hardwood (oak, hornbeam): 50 mm
Max. diamensions of block of wood (spruce): 60 x 60 mm
Max. diameter of wooden board (spruce): 190 x 20 mm
Log length (not adjustable): 6 - 13 cm
Logging device inlet dimensions: 200 x 200 mm
Inlet hopper dimensions: 700 x 400 mm
Blade rotation speed (rpm): 200 / min.
Top performance: 4 m3/h
Engine power: 7,5 kW (10 hp)
Fuel: Unleaded fuel (95)
Fuel tank volume: 4 l
Average gas consumption: 1 - 1,5 l/h
Number of logging blades: 6
The gap between the blade of the cutting blades: approx. 0,1 mm
Lifetime of blades per one grinding: 100 - 500 m3 of small logs
Chassis: 4 castors - manual handling
Overload protection: Belt slip
Dimensions (length x width x height): 205x97x159 cm
Logs output: Double bagging

The engine

The SM70 is driven by a four stroke 10 hp Briggs & Straton VANGUARD engine, with pull cord or optional electric starter. The engine´s output is transferred via V-belts to the oil filled gearbox which drives the blade rotors. The fuel tank capacity is 4 litres. Upon request, a logger can be equipped by hour meter.

The Machine handling

The logger is equipped for ease of handling by handle on the hopper and by 4 wheels for manual handling. (2 fixed and 2 swivelling with brakes).

The double bagging for raschle bags

It is used raschle bags of 57 × 104 cm. The flap can be switched between filling one or the other bag. After filling the first bag, there is no need to interrupt the job due to a full bag - just flip the flap and the chips fall further into the second empty bag. During the filling of the second bag it is possible to replace the first, already full bag. Continuous insertion of the branches allows to fill bag in 20 seconds. Optimal for the operator of the machine are 2-3 persons, one of them only changing the bags. We provide 50 pcs of raschle bags free of charge with each machine.

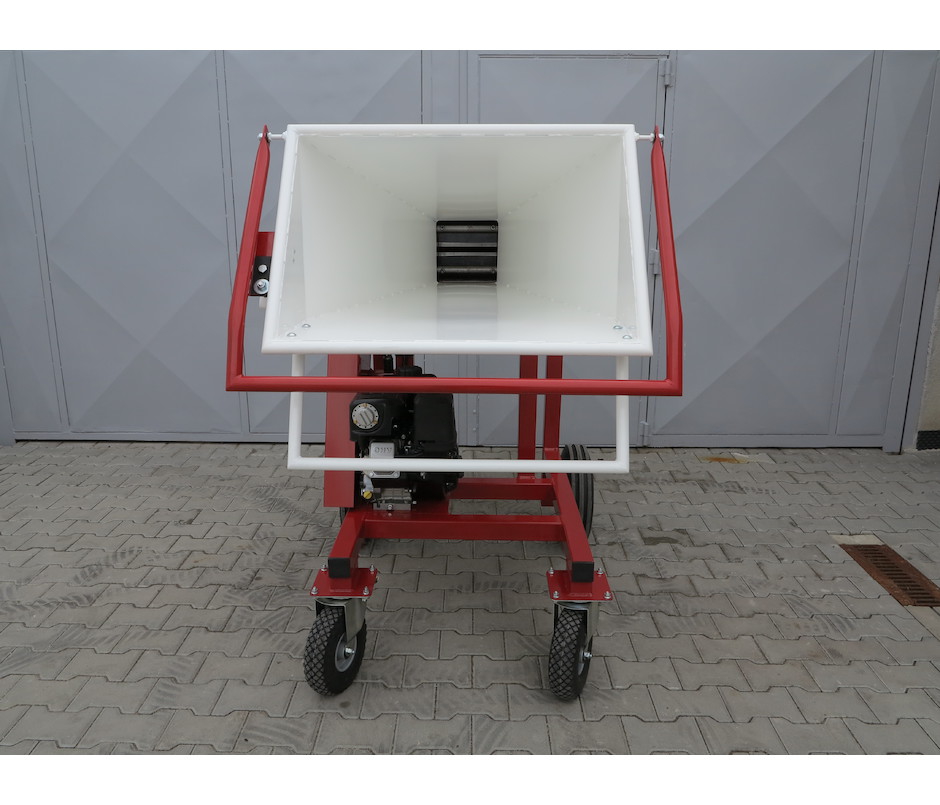

The inlet hopper

The hopper is long enough to provide safety and is equipped with a safety shut-off frame, which by pressing down stops the engine. The inlet hopper is oriented horizontally, which greatly facilitates insertion of long branches compared to the vertical or sloping hopper. Surface treatment of the whole machine is made with powder paint.


The Overload protection

If you put too large branch in the chipping-device, V-belts slip shortly and the engine stops. This is the way how to protect the branch logger against overload. When this situation happens, it´s usually impossible to take the branch outside of the chipping-device, because knives are jammed in the branch. In this situation, make sure the engine can not start itself, put away the small round cover of V-belts and turn over with the sheave clockwise until the branch is out of the chipping device. Then, please put the cover back on the place.


The chipping device

The working principle of branch loggers URBAN lies in two counter rotating shafts with knives. The rotating knives draw in the wood material into the feed hopper unassisted. The passage gap between the shafts is 70 mm. Each shaft has 3 fixed knives, made from high quality tool steel. It is possible to resharpen the knives repeatedly. After sharpening there is a pad to be put under the knives in order to keep the same gap between the knives (c. 0,1 mm). One single sharpening of knives is capable of producing from 100 to 500 solid meters of small logs, depending the level of contaminants (mud, nails, stones etc.). Each blade can be sharpened up about 4 mm, then it must be replaced with a new one.
