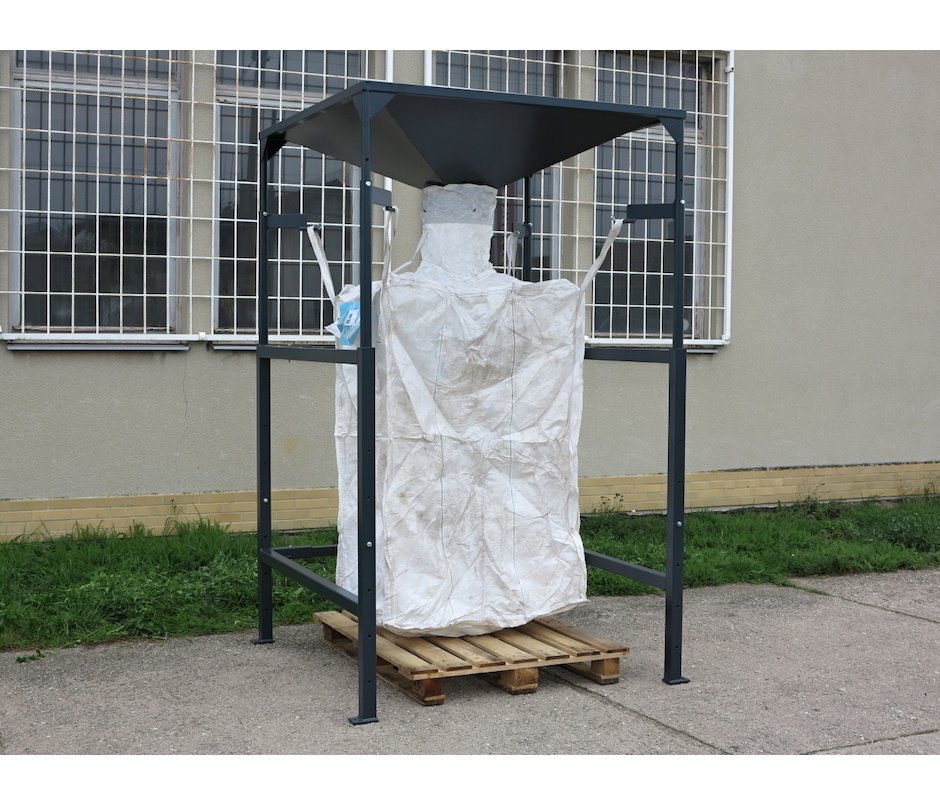

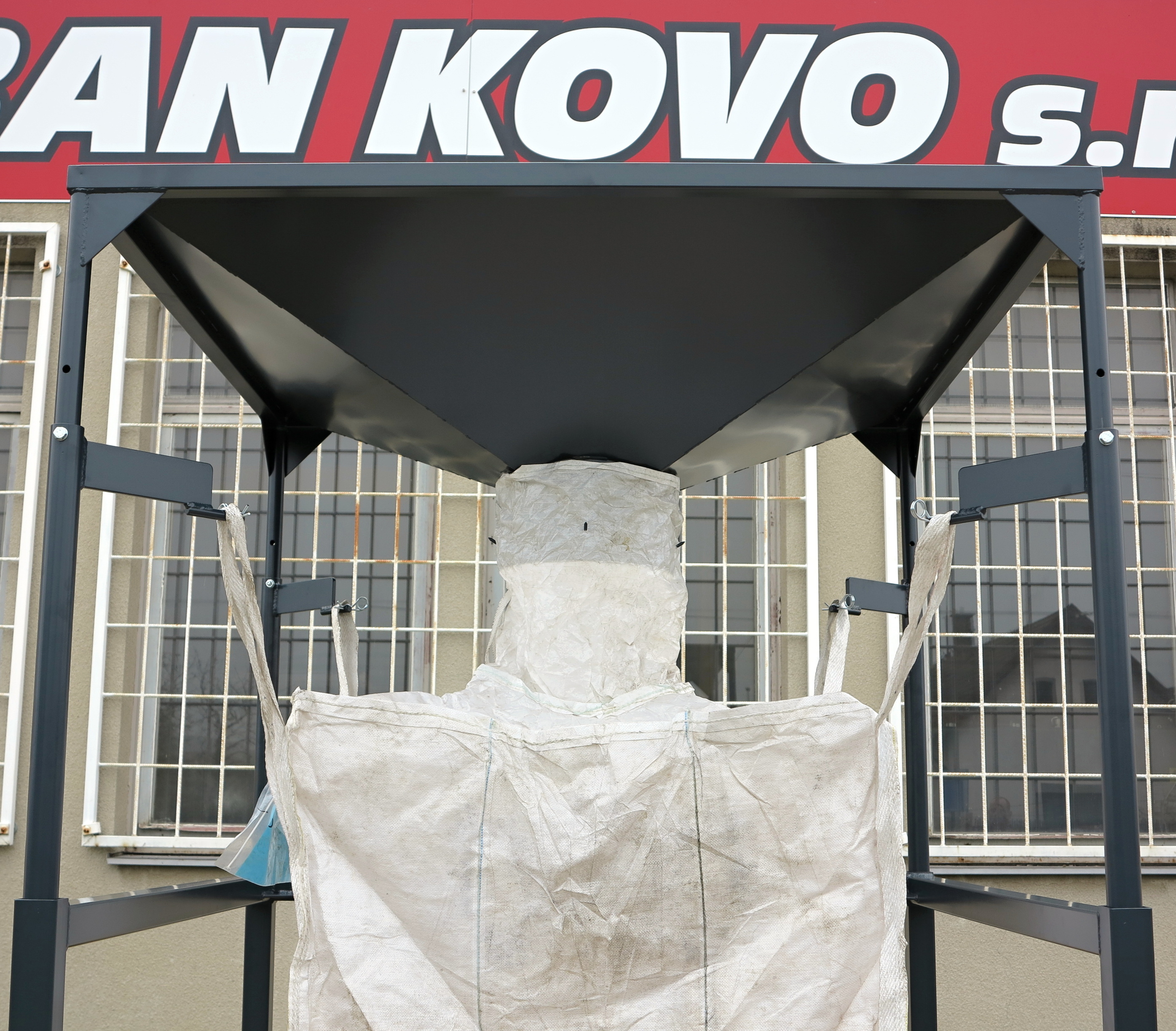

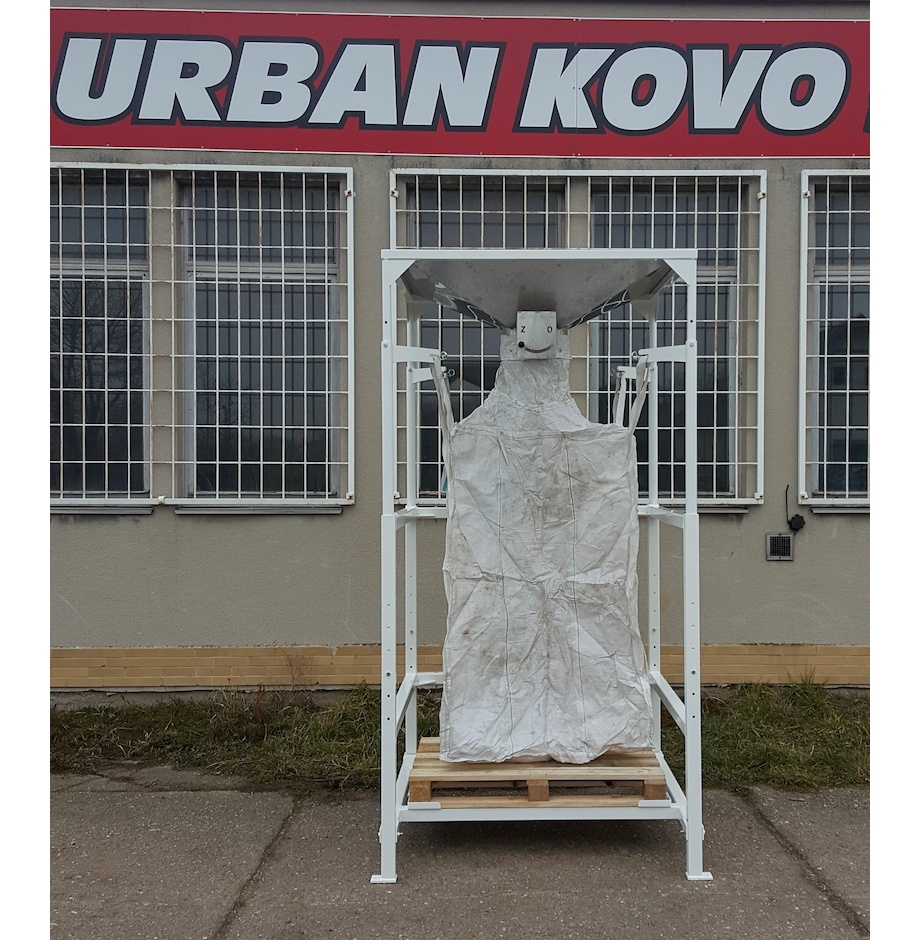

Big-Bag stand - custom made
If you need to fill the logs or any other material into the Big-Bag, we will produce a custom-made Big-Bag stand with dimensions according to your requirements, including the delivery of Big-Bags with the required dimensions and parameters.
Approximate prices:
Reinforced stand (1000 kg) without hopper ....................... approx. 830 EUR + VAT

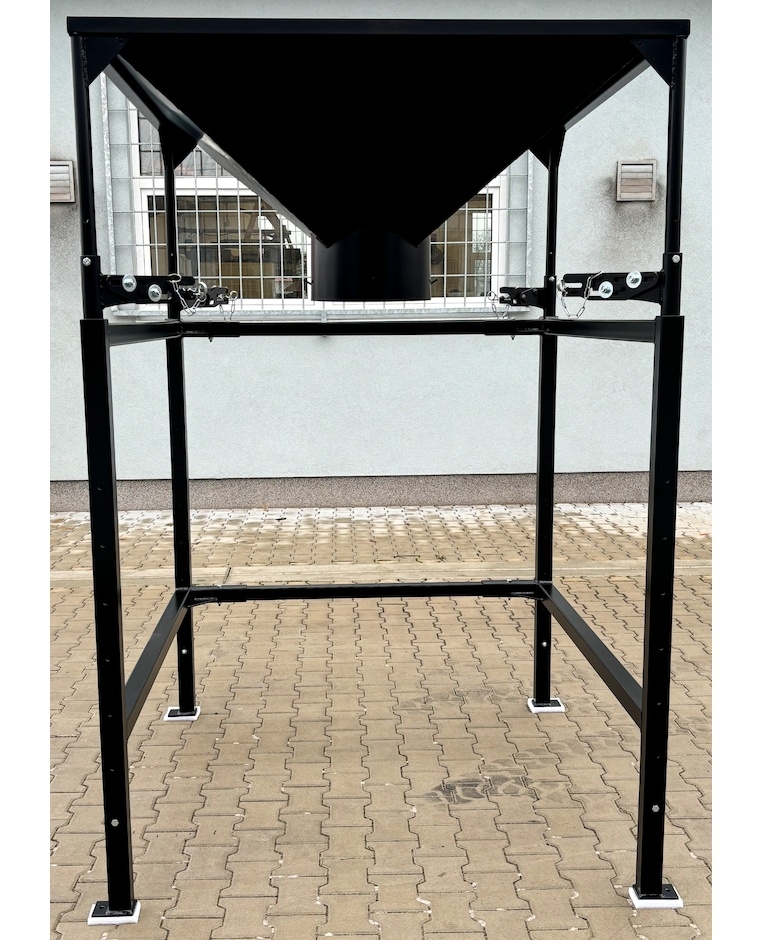

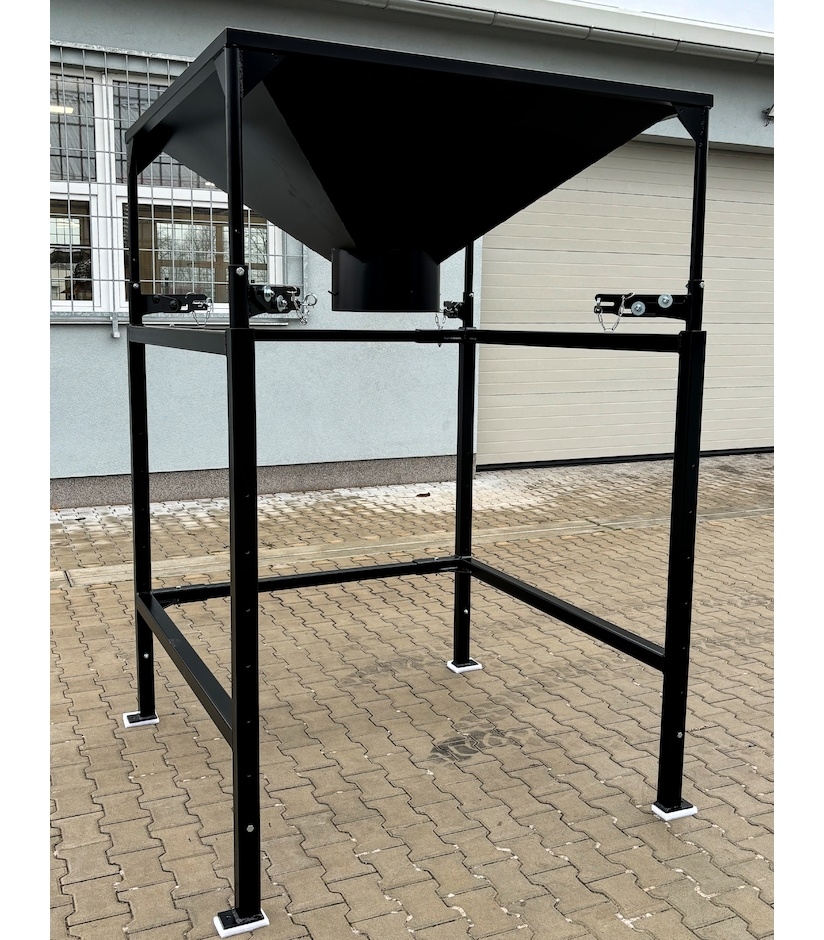

Reinforced stand (1000 kg) with hopper ............................. approx. 1 450 EUR + VAT
Reinforced stand (1000 kg) with stainless steel hopper ... approx. 2 000 EUR + VAT
Prices for other stand and hopper variants are listed below in the extended description.
- Category: Optional accessories
- Model series:
- Catalogues code:
- Offered from:20.02.2020
- Availability :within 3 weeks
Product variants
| Photo | Variant | |
|---|---|---|
|

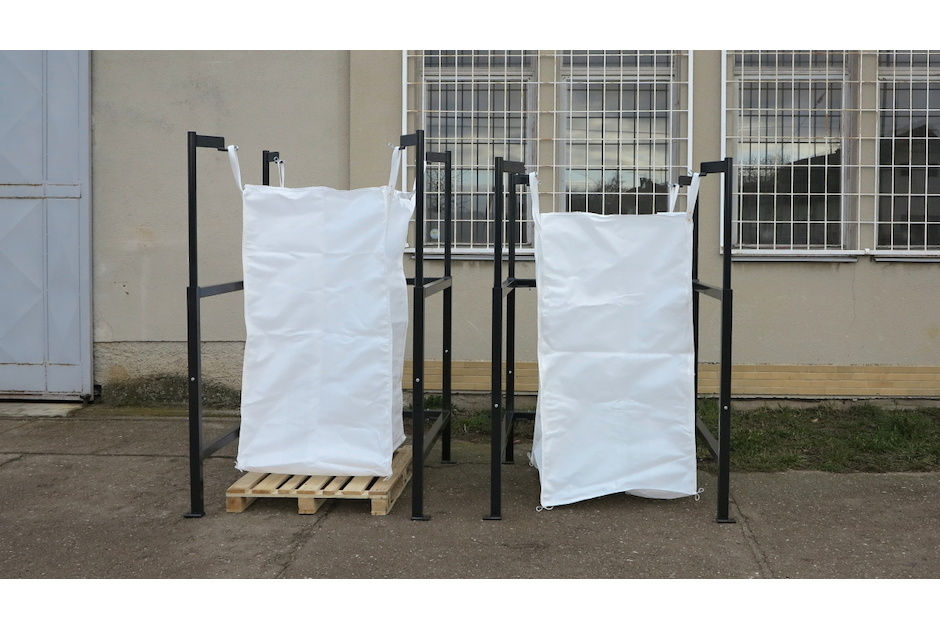

Big-Bag stand - high (600 kg) on stock | |
|
Big-Bag stand - high and reinforced (1000 kg) on stock | |
|
Big-Bag stand on stock |
Below you will find the parameters and approximate prices of the most commonly produced stand and hopper variants.

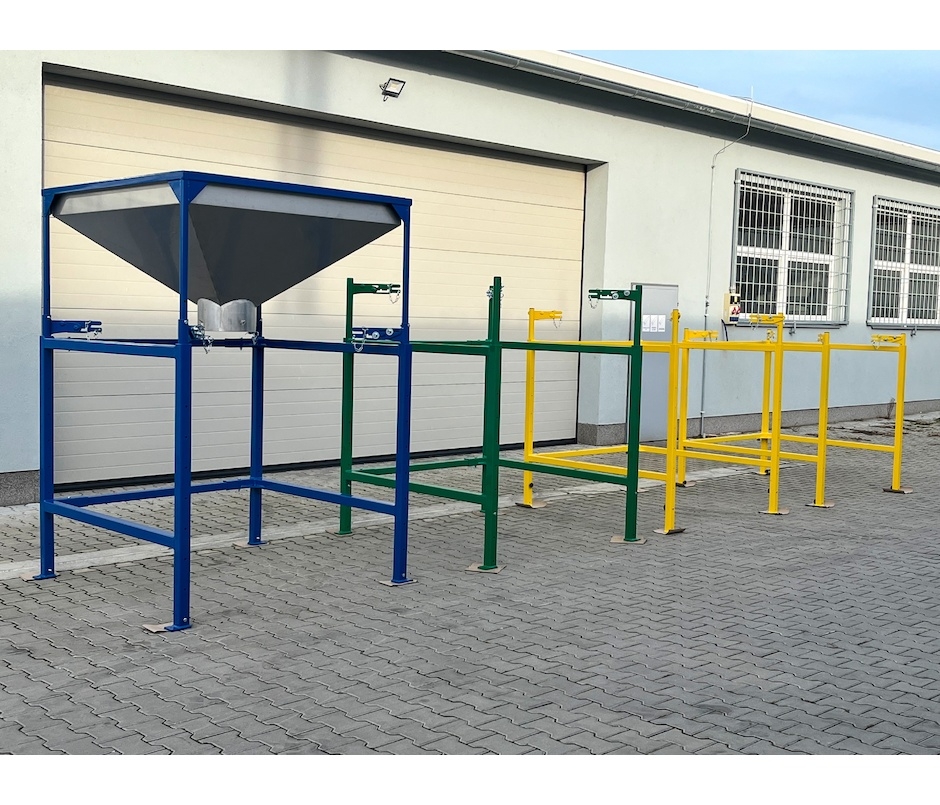

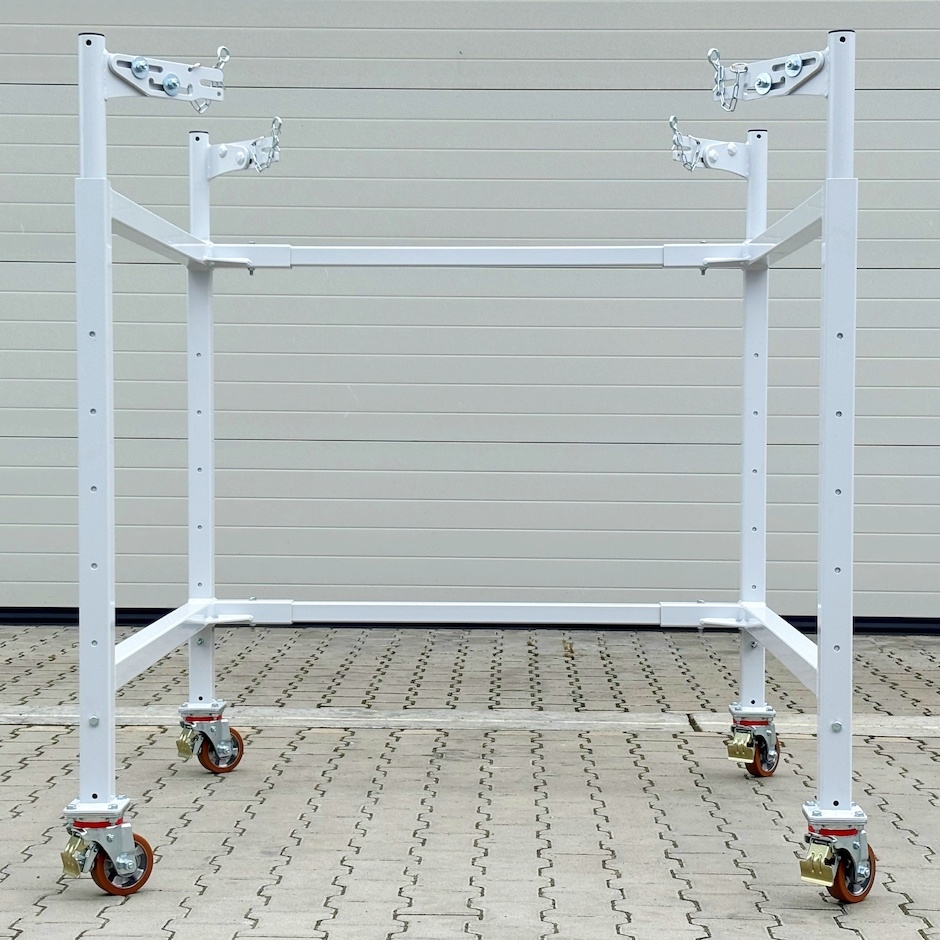

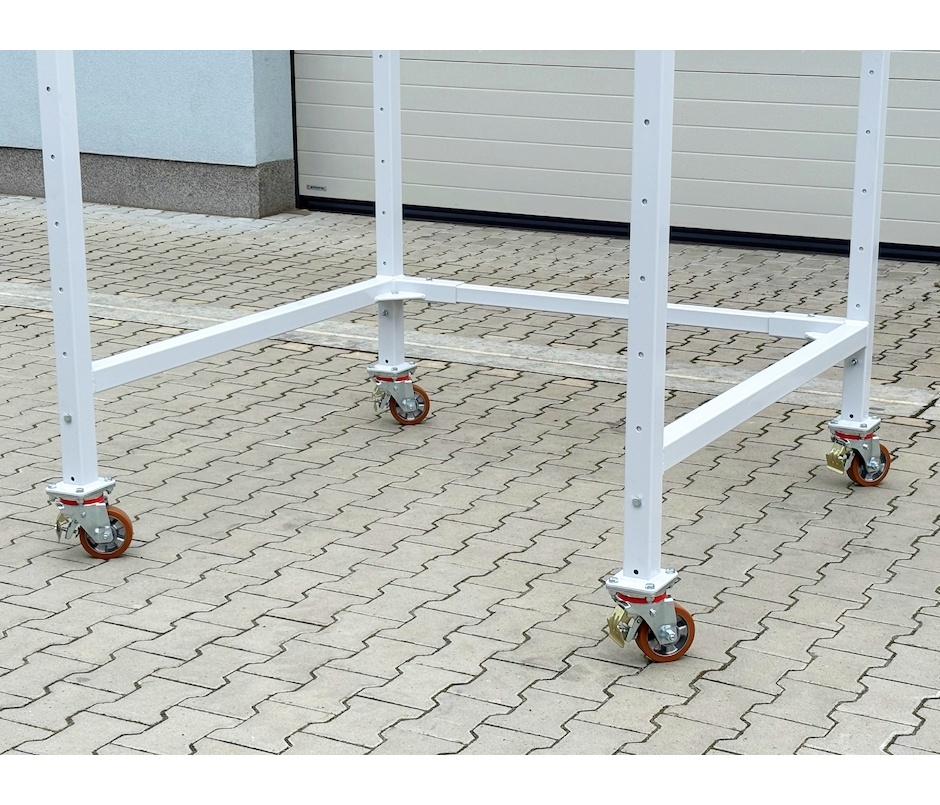

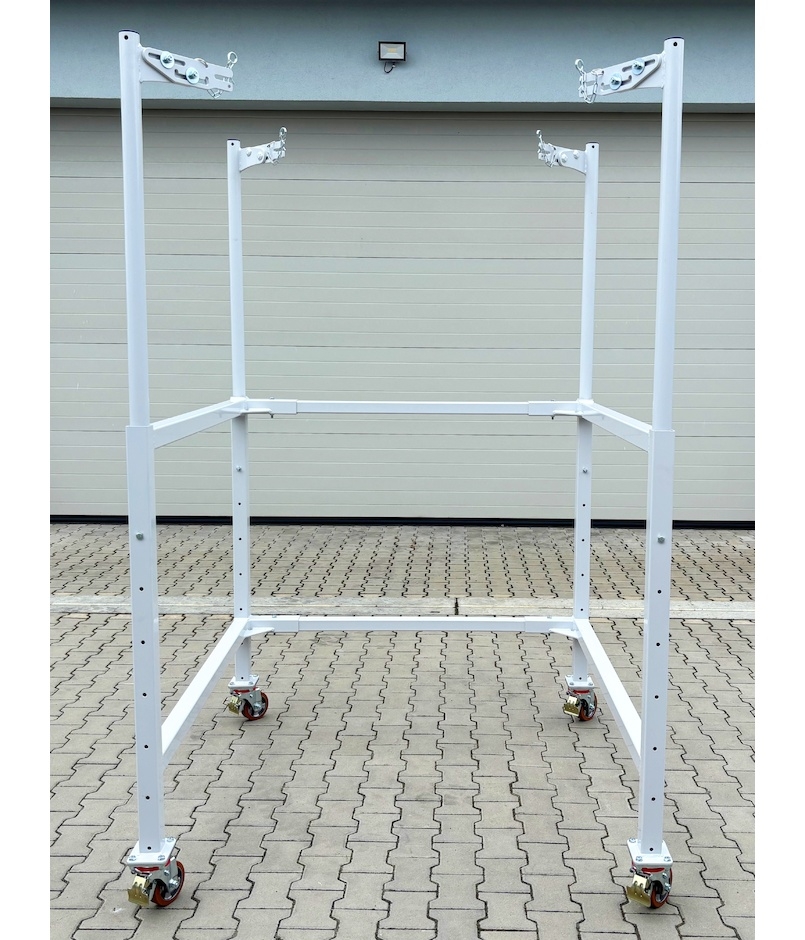

STANDS
1. for Big-Bag with a max. weight 1000 kg
price: 830 EUR + VAT
Technical parameters:
- inside dimensions 139 x 139 cm

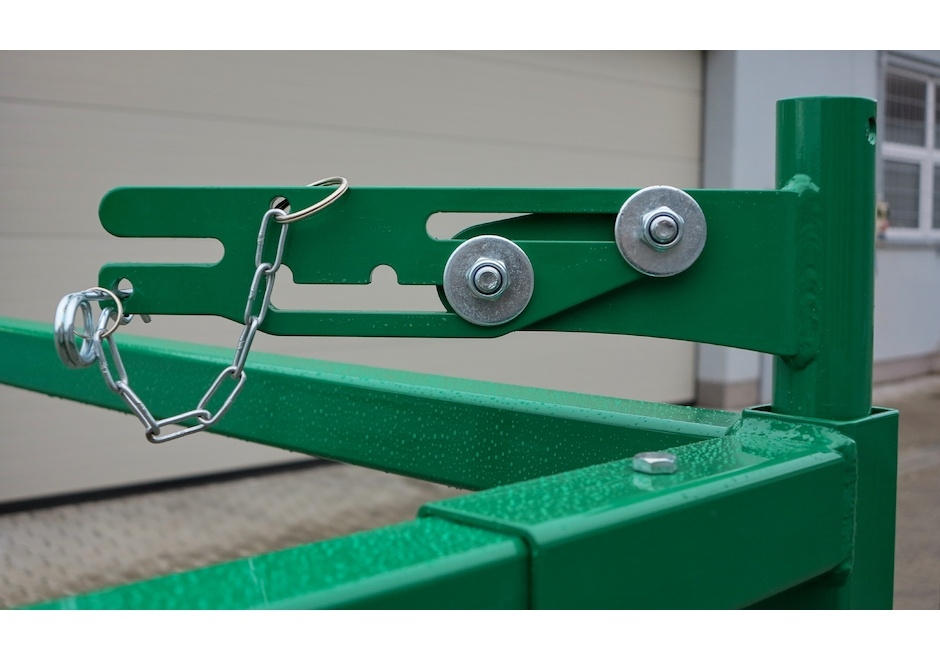

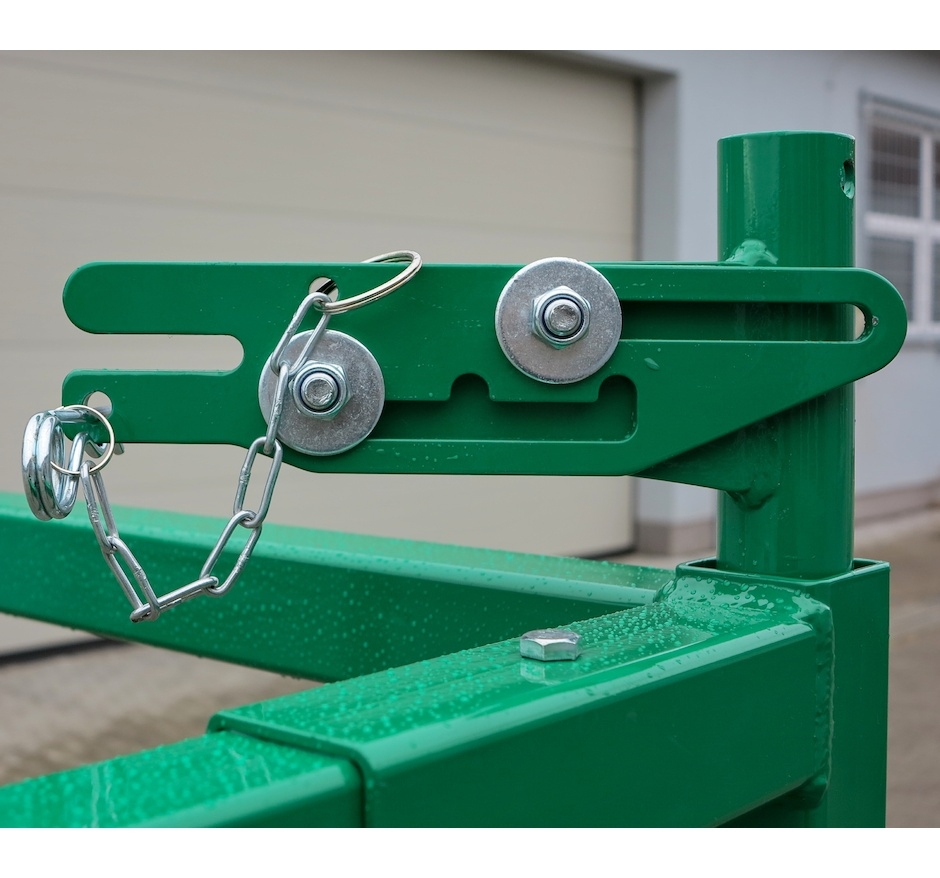

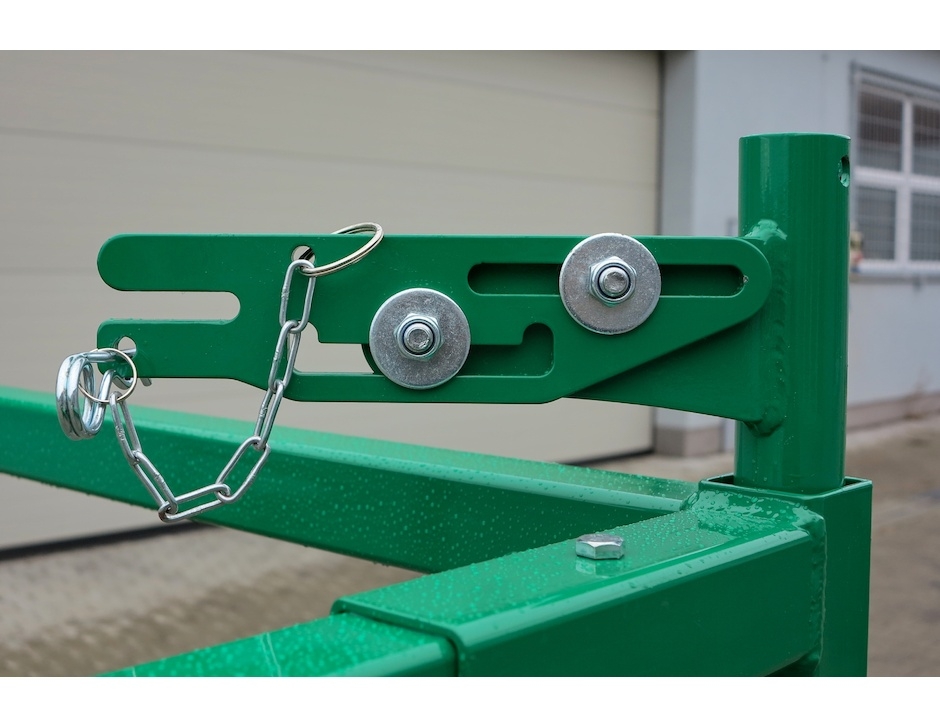

- adjustable hook height from 145 to 250 cm (step 7,5 cm)
- Length of the hooks is also adjustable, so this stand can be used for Big-Bags with a floor plan from 90x90 to 110x110 cm.
- dismantlable for easy transport
- weight of the stand 111 kg
- color as required (standard RAL colors: 9016, 1021, 2004, 3002, 5010, 6029, 7016, 7021, 7035, 7047, 9005)
2. for Big-Bag with a max. weight 1500 kg
price: 1 080 EUR + VAT
Technical parameters:
- inside dimensions 138 x 138 cm
- adjustable hook height from 169 to 265 cm (step 6 cm)
- Length of the hooks is also adjustable, so this stand can be used for Big-Bags with a floor plan from 90x90 to 110x110 cm.
- dismantlable for easy transport
- weight of the stand 146 kg
- color as required (standard RAL colors: 9016, 1021, 2004, 3002, 5010, 6029, 7016, 7021, 7035, 7047, 9005)

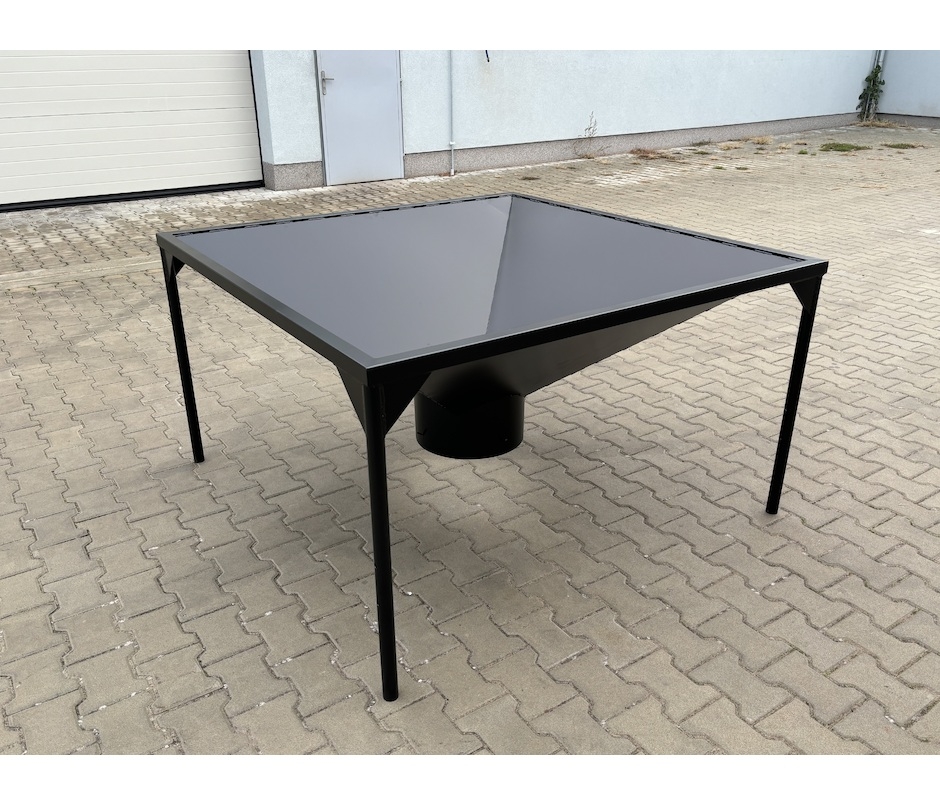

HOPPERS
When choosing the ideal hopper, you can select from the following parameters:
1. hopper material
- powder-coated steel
- stainless steel
2. hopper side wall angle
- 28°
- 40°
- 40° + 15 cm vertical extension
3. hopper outlet diameter
- 330 mm
- 380 mm
4. hopper outlet closure
- without closure
- rotary flap
- slide gate closure
Examples of hopper variants:

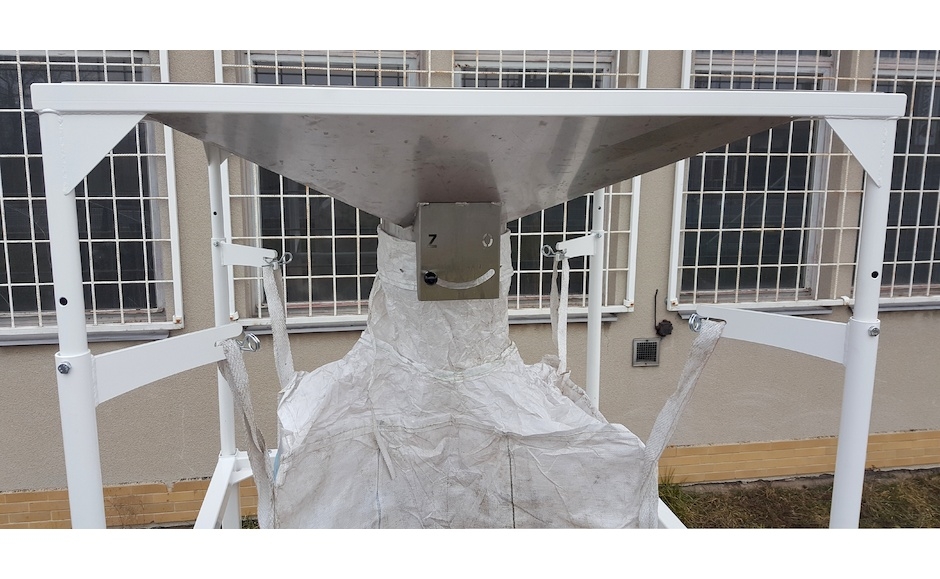

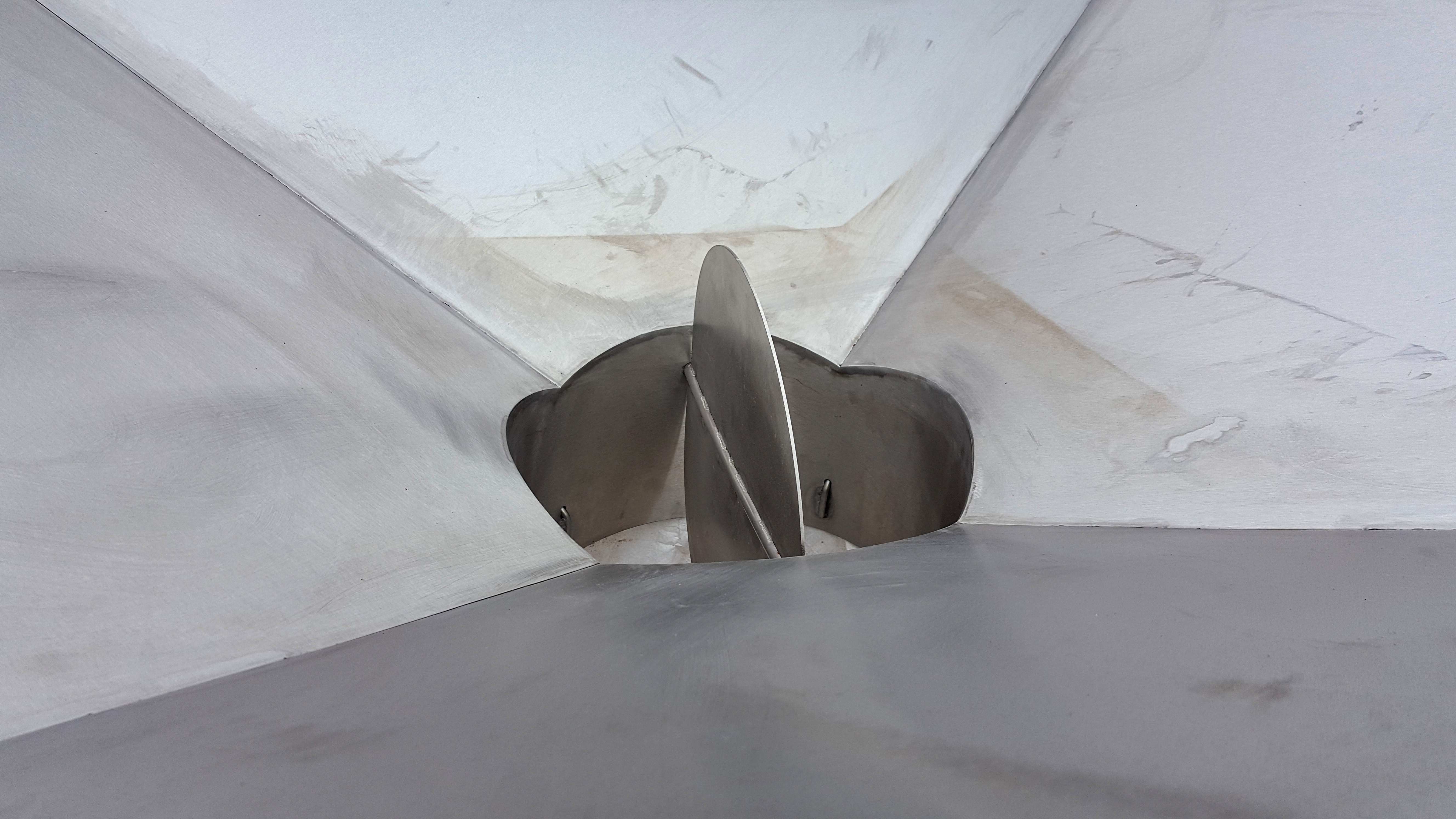

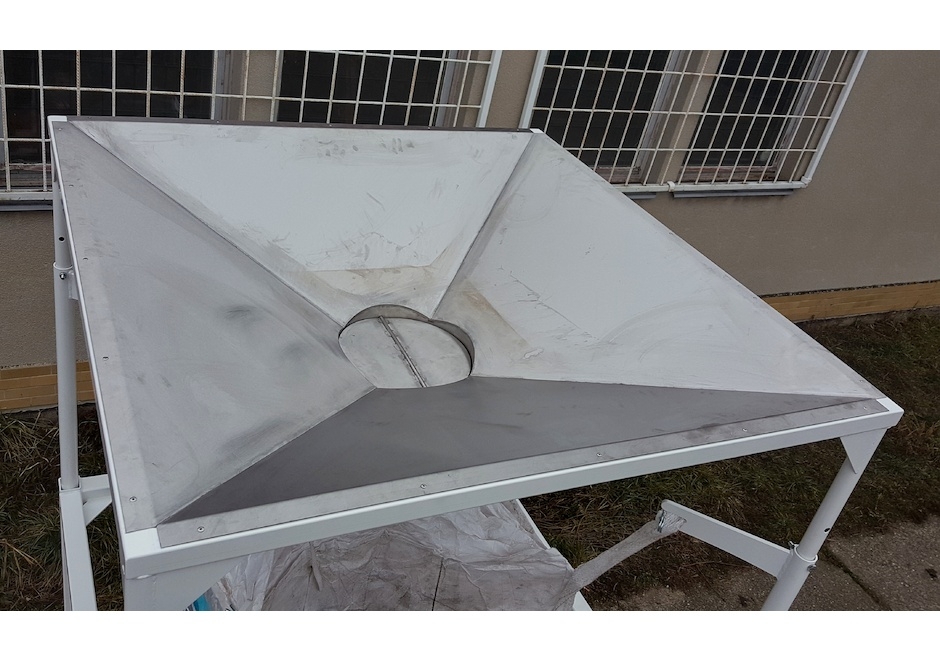

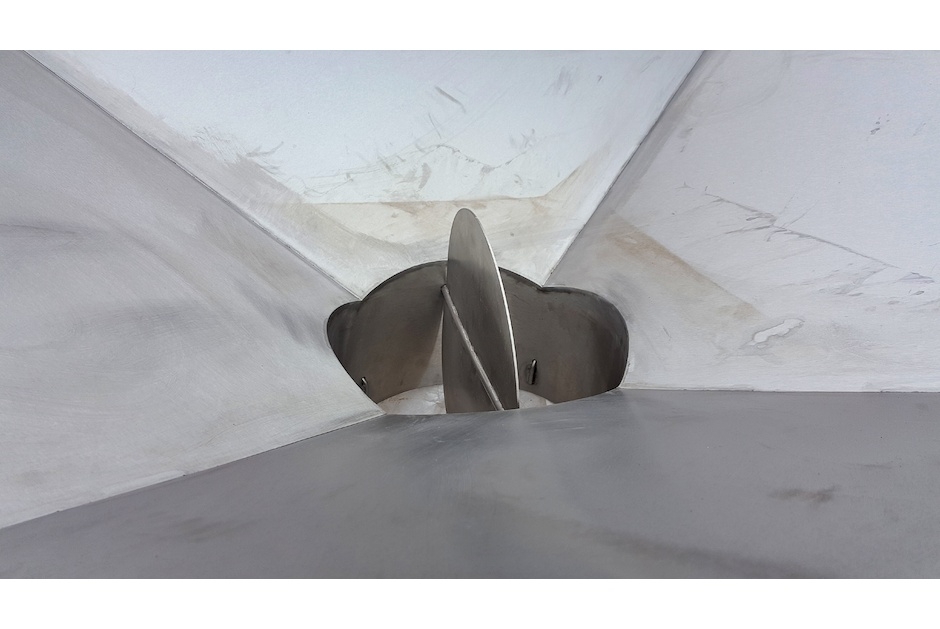

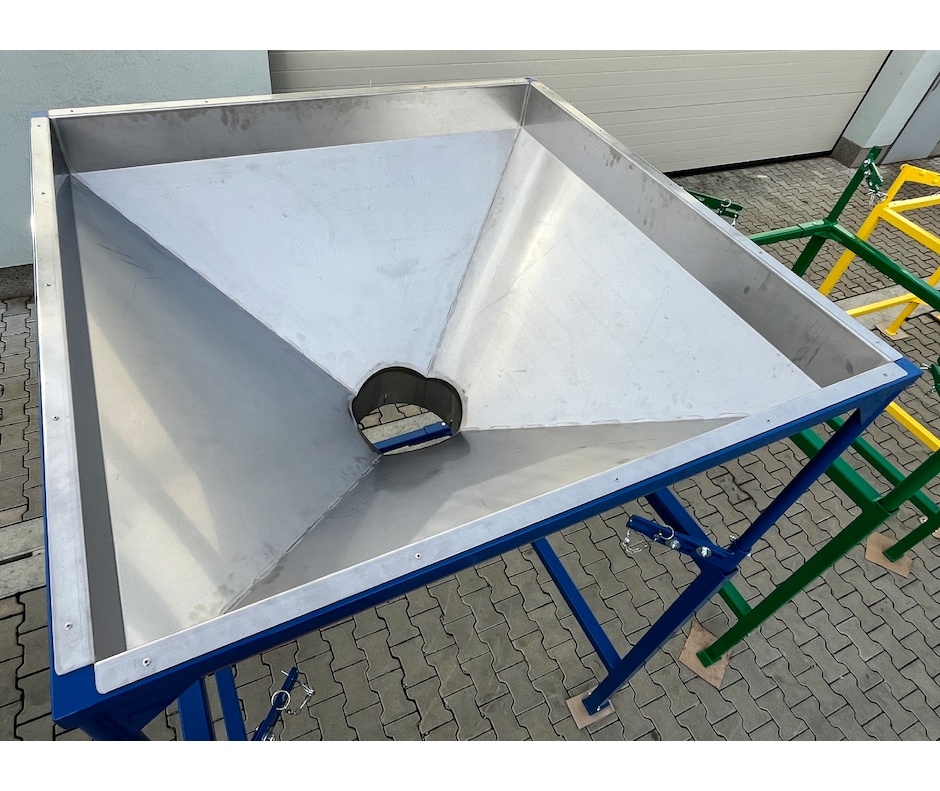

Stainless steel hopper, 28° side wall angle, with outlet Ø 330 mm and rotary flap closure.

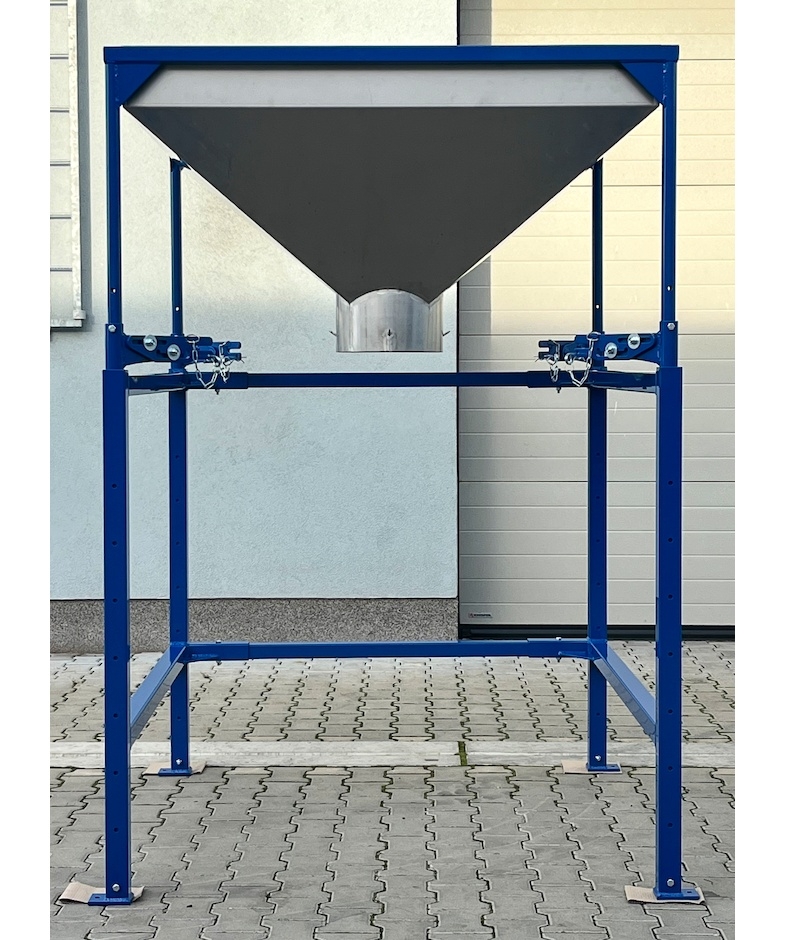

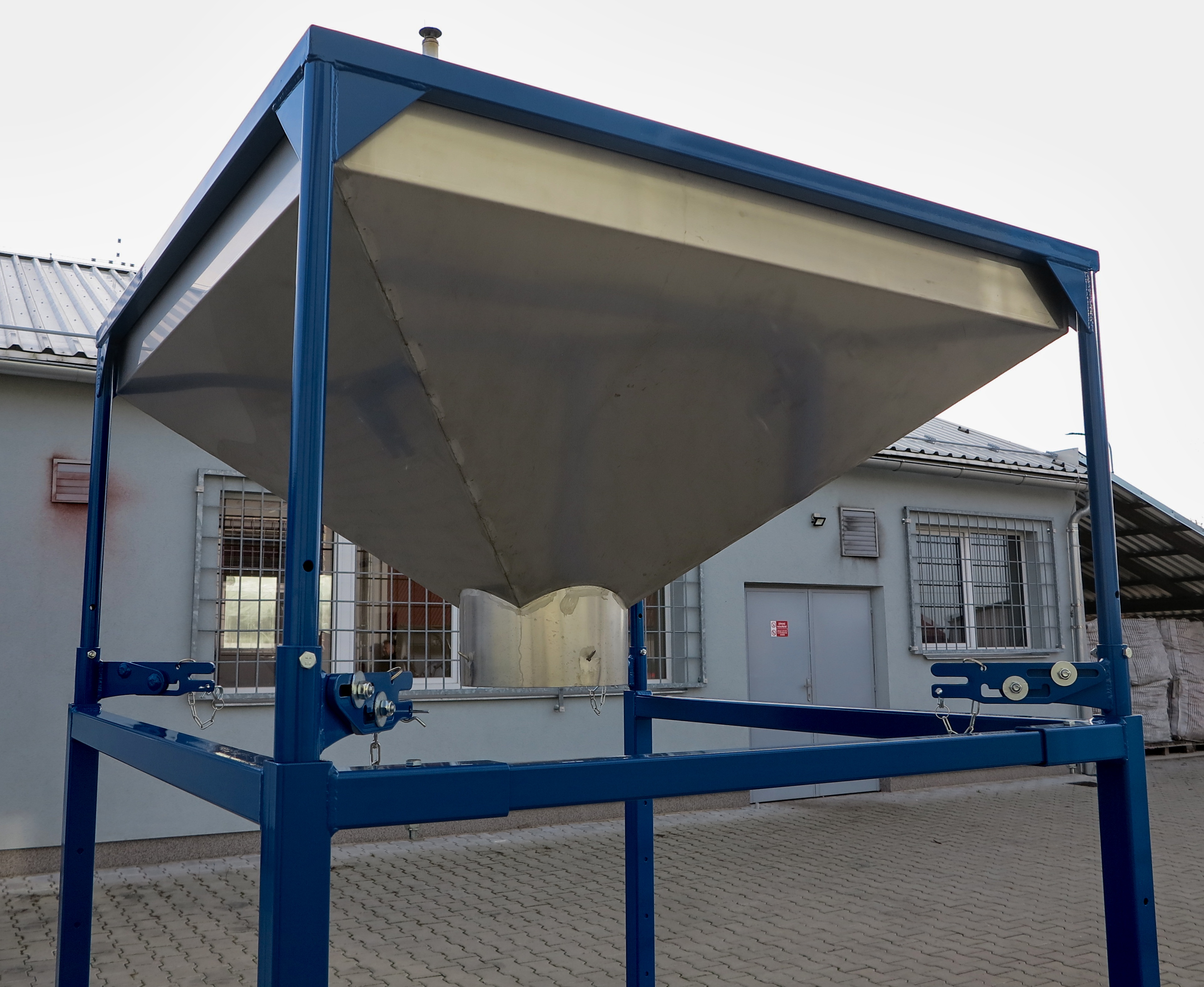

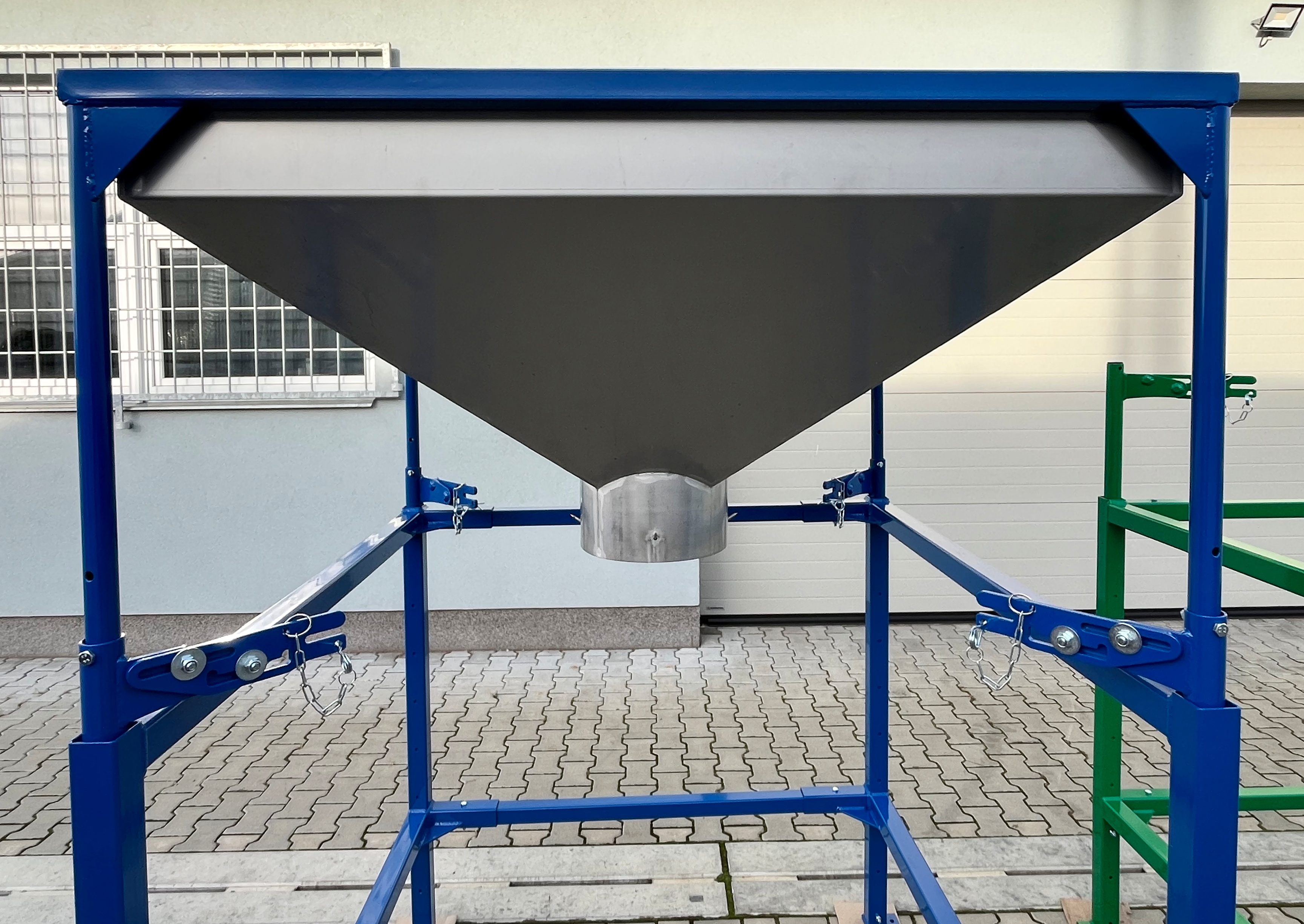

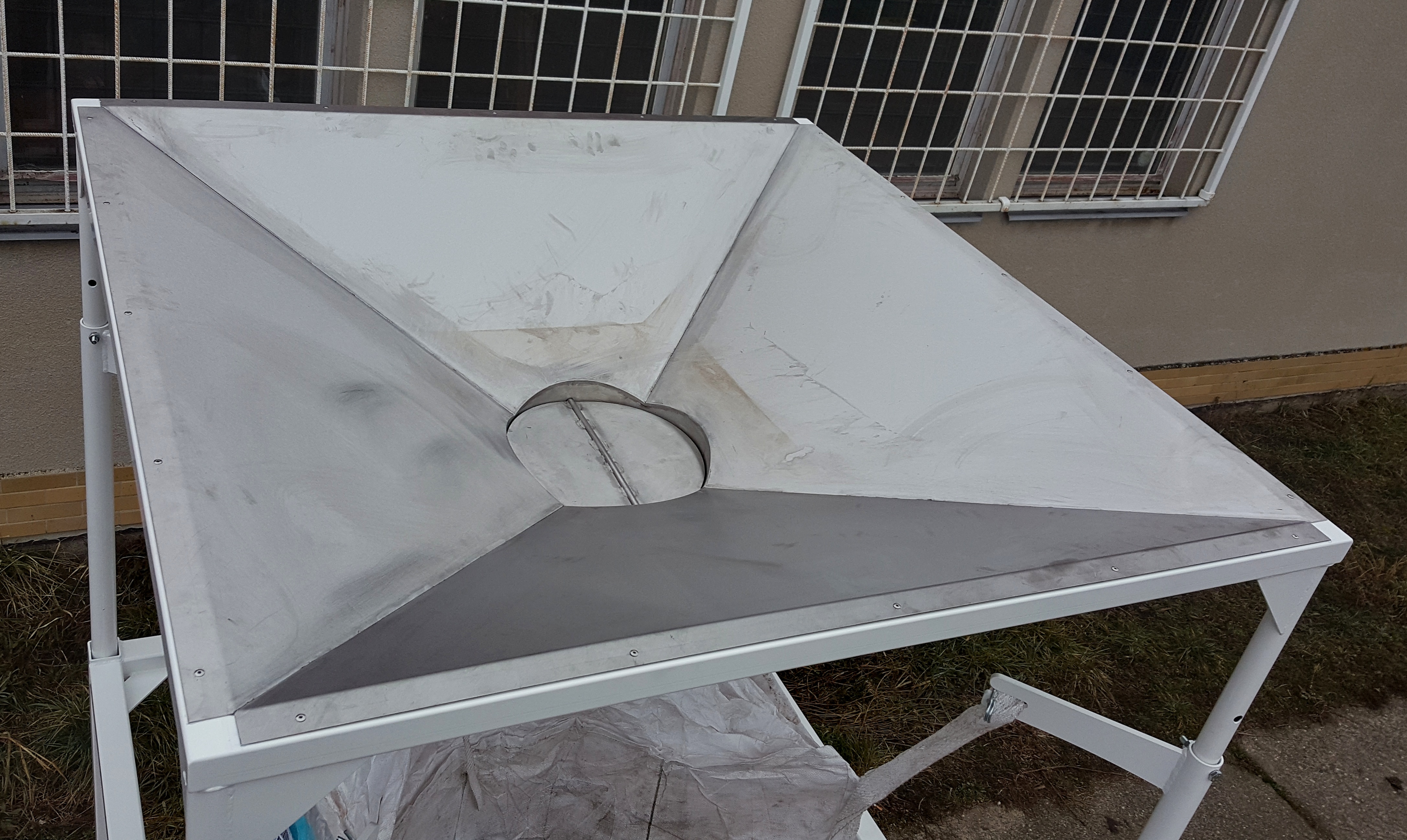

Stainless steel hopper, 40° side wall angle + 15 cm vertical extension, outlet Ø 330 mm, without closure.

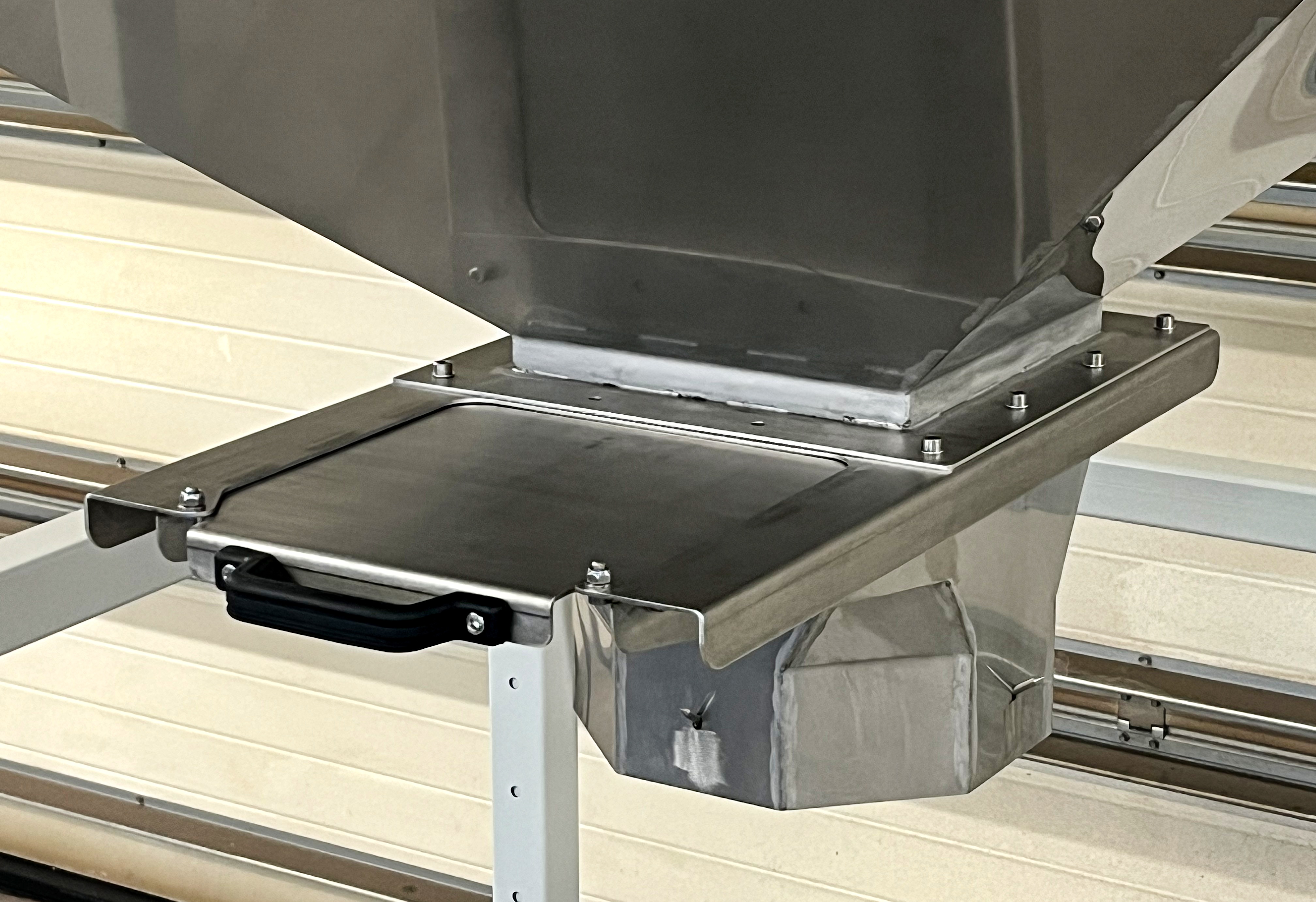

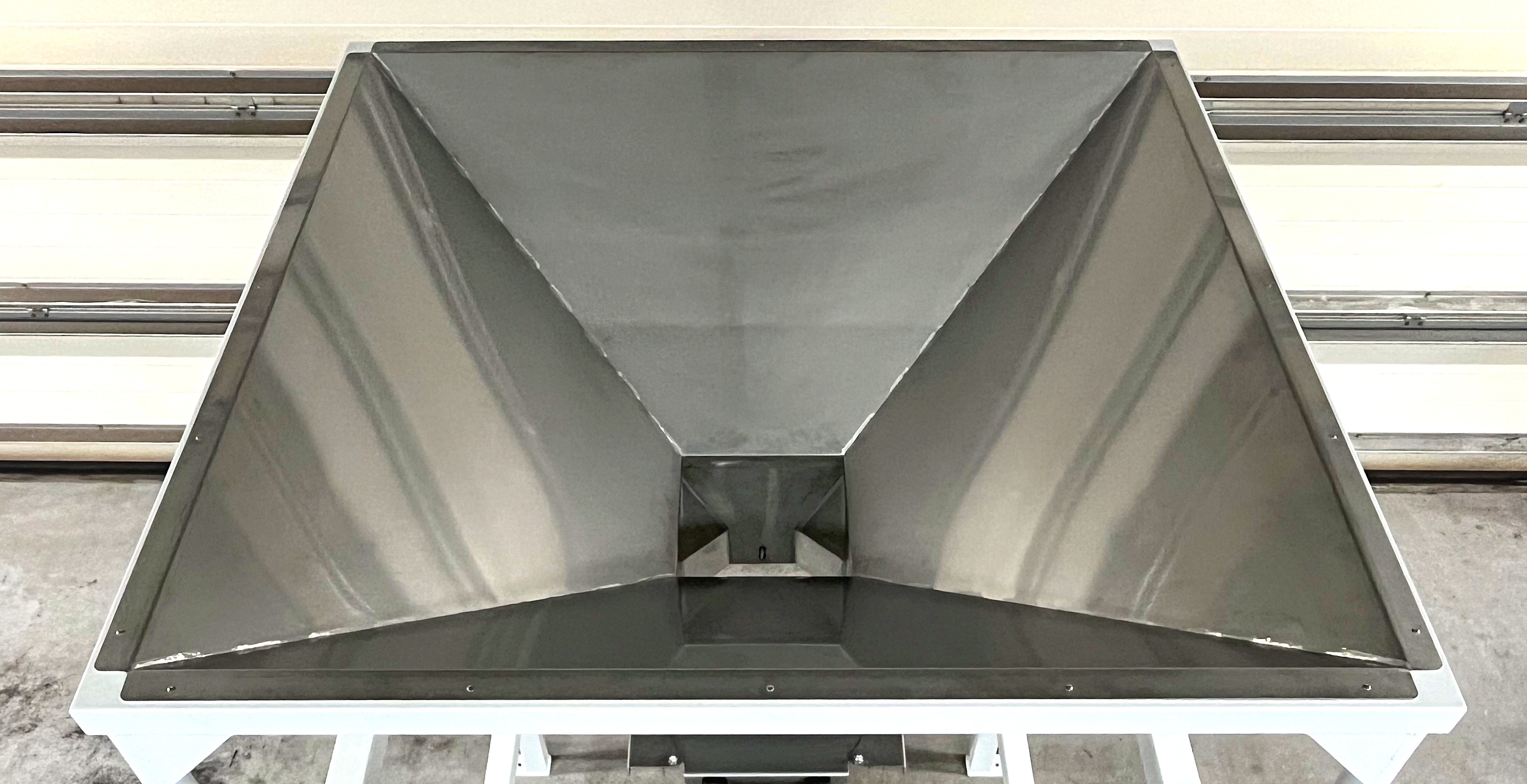

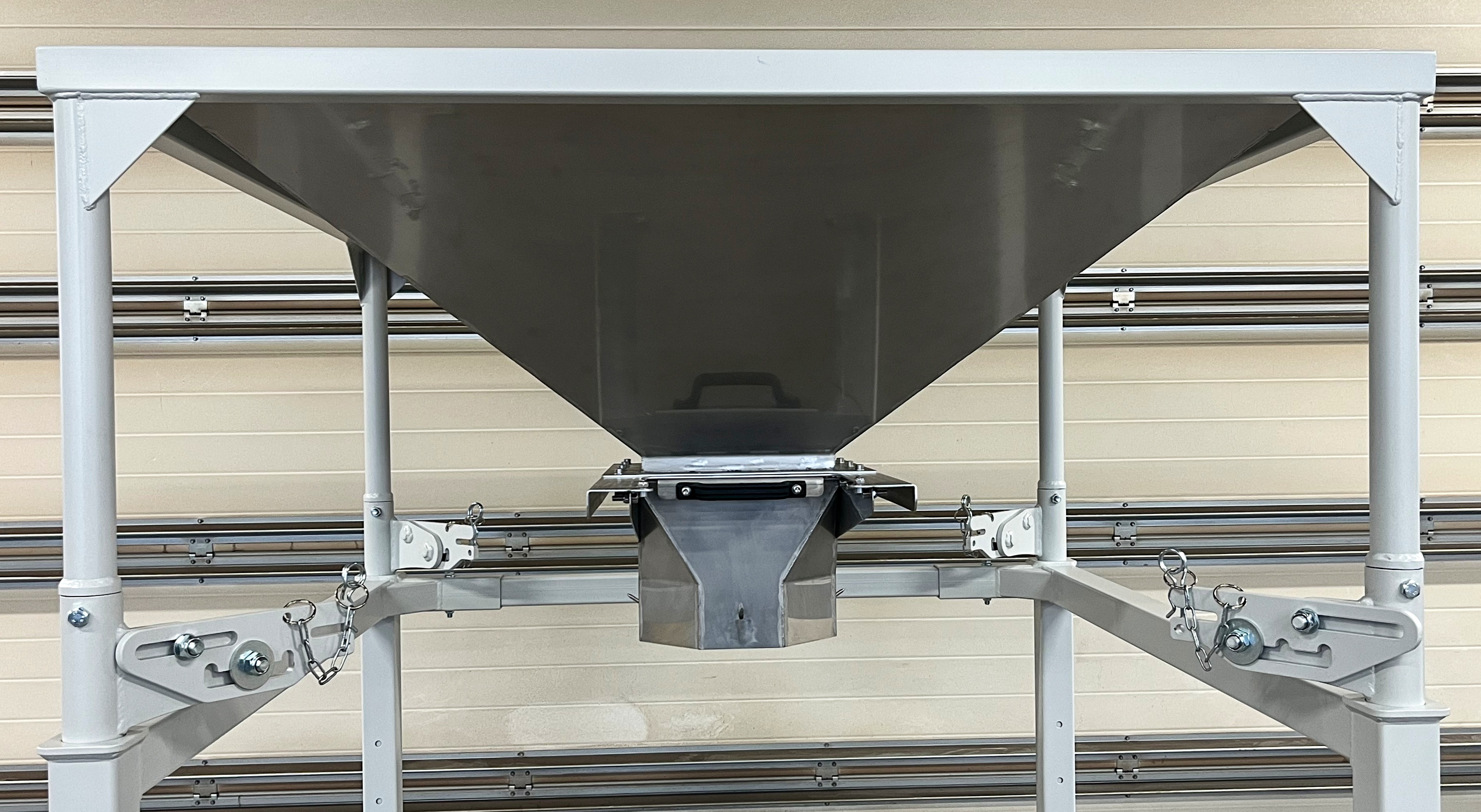

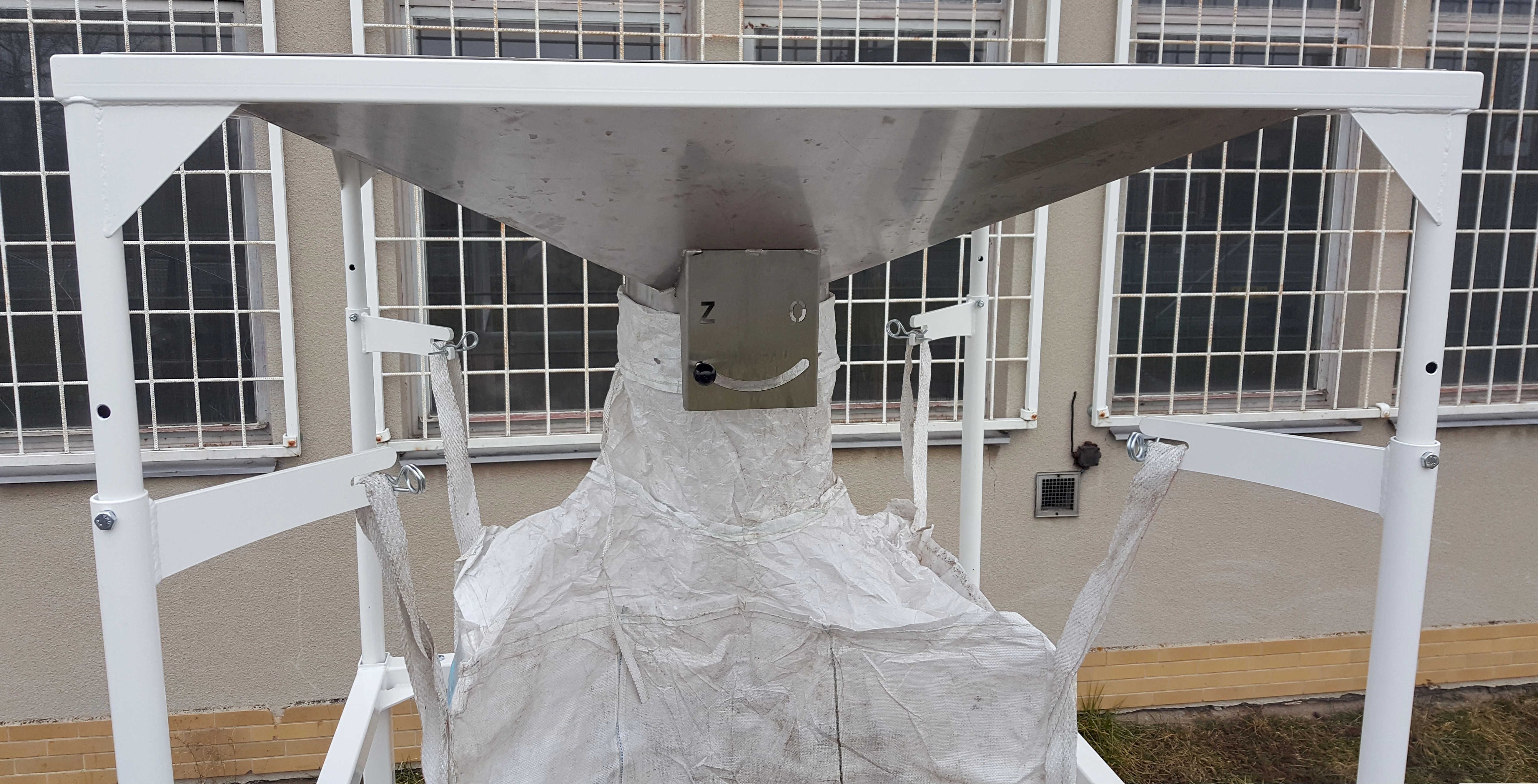

Stainless steel hopper, 40° side wall angle, with an octagonal outlet 314 mm (circumference equivalent to Ø 330 mm) and with slide gate closure.

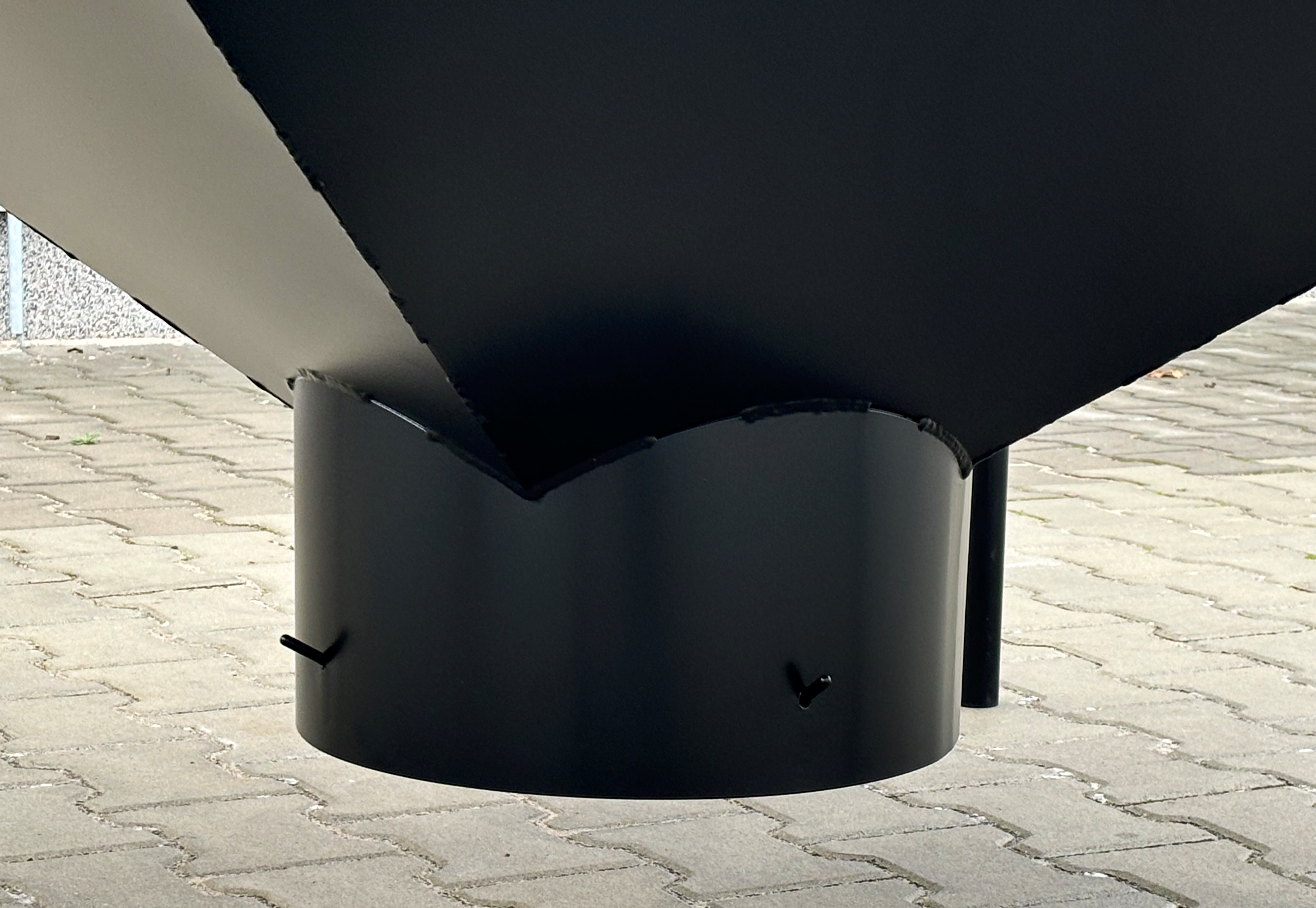

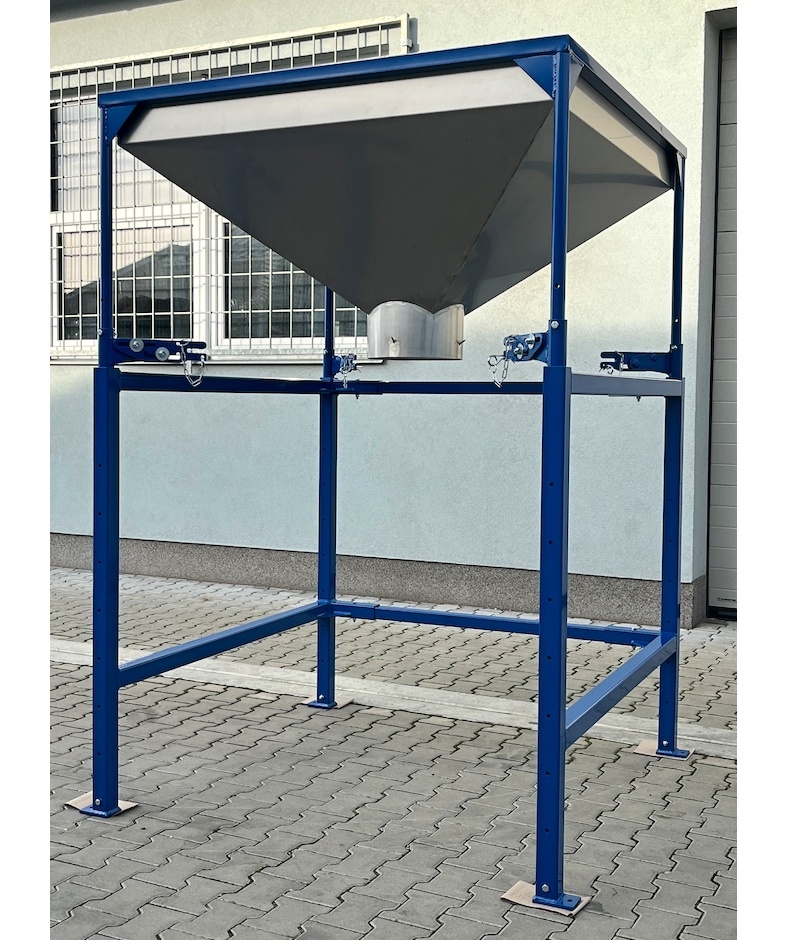

Powder-coated steel hopper, 40° side wall angle, with outlet Ø 380 mm, without closure.

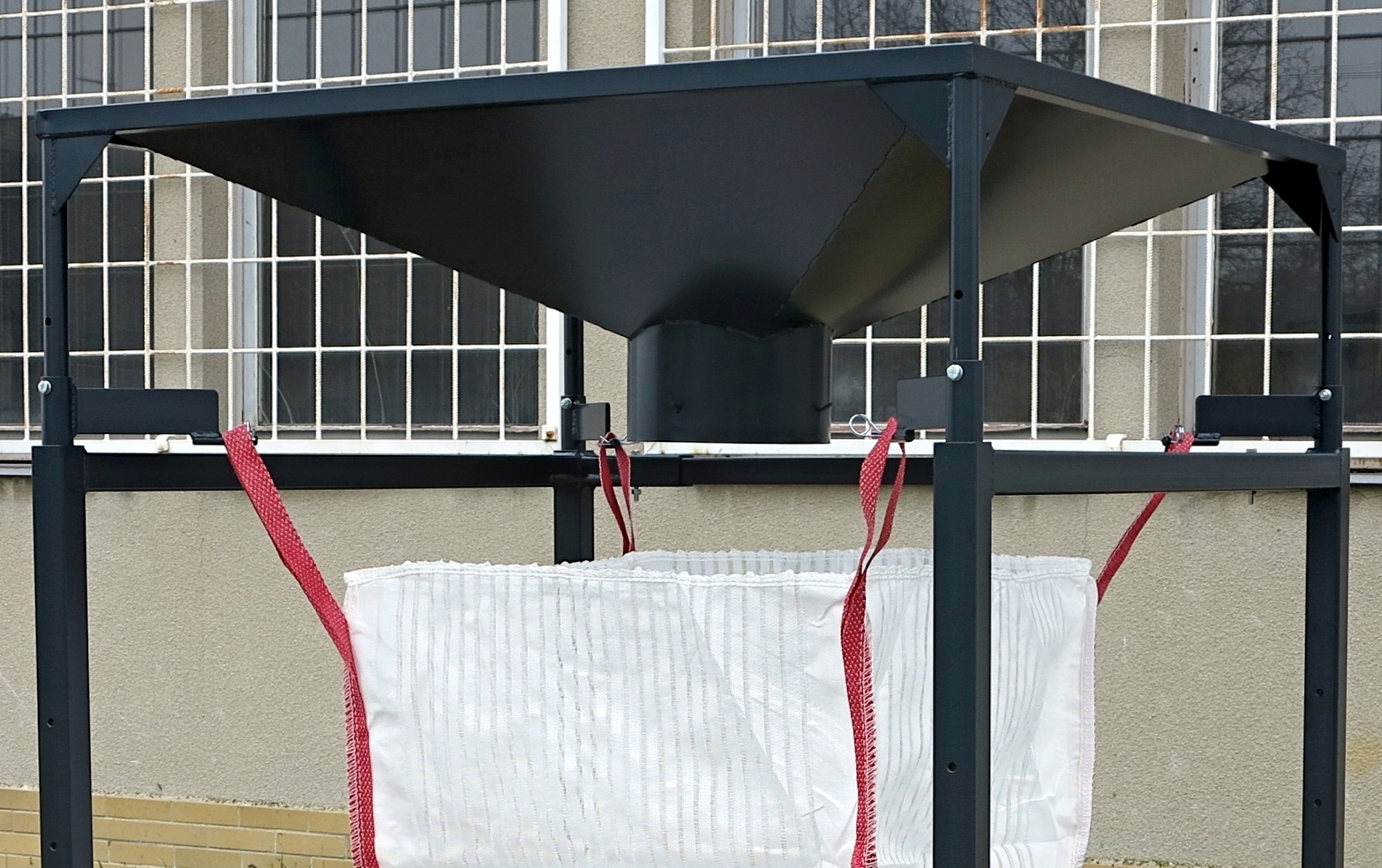

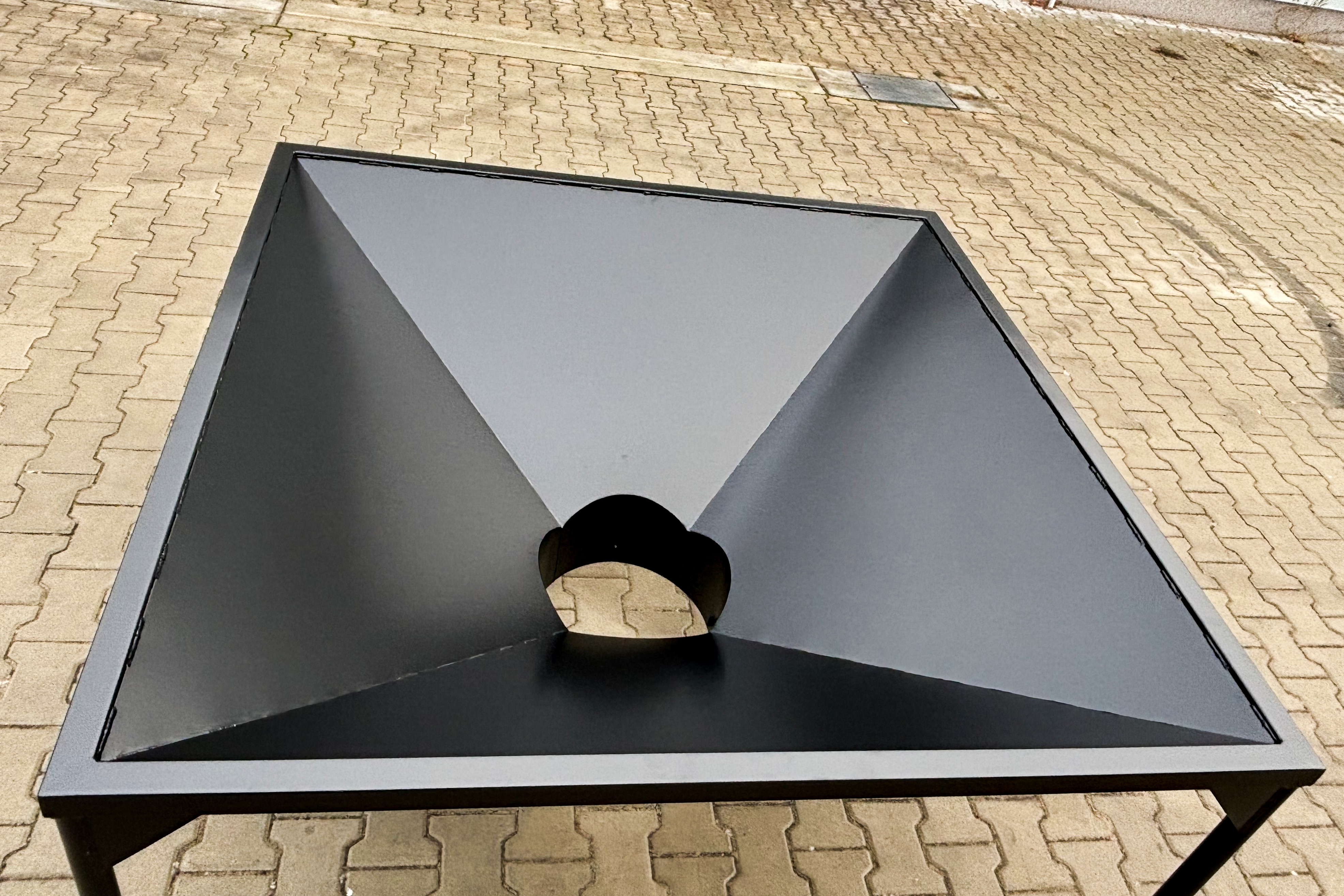

Powder-coated steel hopper, 28° side wall angle, with outlet Ø 330 mm, without closure.
Approximate hopper prices:
|
Hopper side wall angle |
Hopper outlet Ø 330 or 380 mm |
HOPPER MATERIAL |
|
|---|---|---|---|
|
Powder-coated steel |
Stainless steel |
||
|
28° without vertical extension
|
without closure |
600 EUR + VAT |
935 EUR + VAT |
|
with rotary flap |
665 EUR + VAT |
1 050 EUR + VAT |
|
|
with slide gate closure |
865 EUR + VAT |
1 430 EUR + VAT |
|
|
40° without vertical extension
|
without closure |
620 EUR + VAT |
1 040 EUR + VAT |
|
with rotary flap |
685 EUR + VAT |
1 155 EUR + VAT |
|
|
with slide gate closure |
885 EUR + VAT |
1 530 EUR + VAT |
|
|
40° with 15 cm vertical extension
|
without closure |
750 EUR + VAT |
1 170 EUR + VAT |
|
with rotary flap |
815 EUR + VAT |
1 290 EUR + VAT |
|
|
with slide gate closure |
1 015 EUR + VAT |
1 665 EUR + VAT |
|
If you do not choose from the options offered, we can manufacture a stand or hopper exactly according to your requirements.
For processing an accurate quote, we need to know the dimensions of your Big-Bags and their max. weight.
