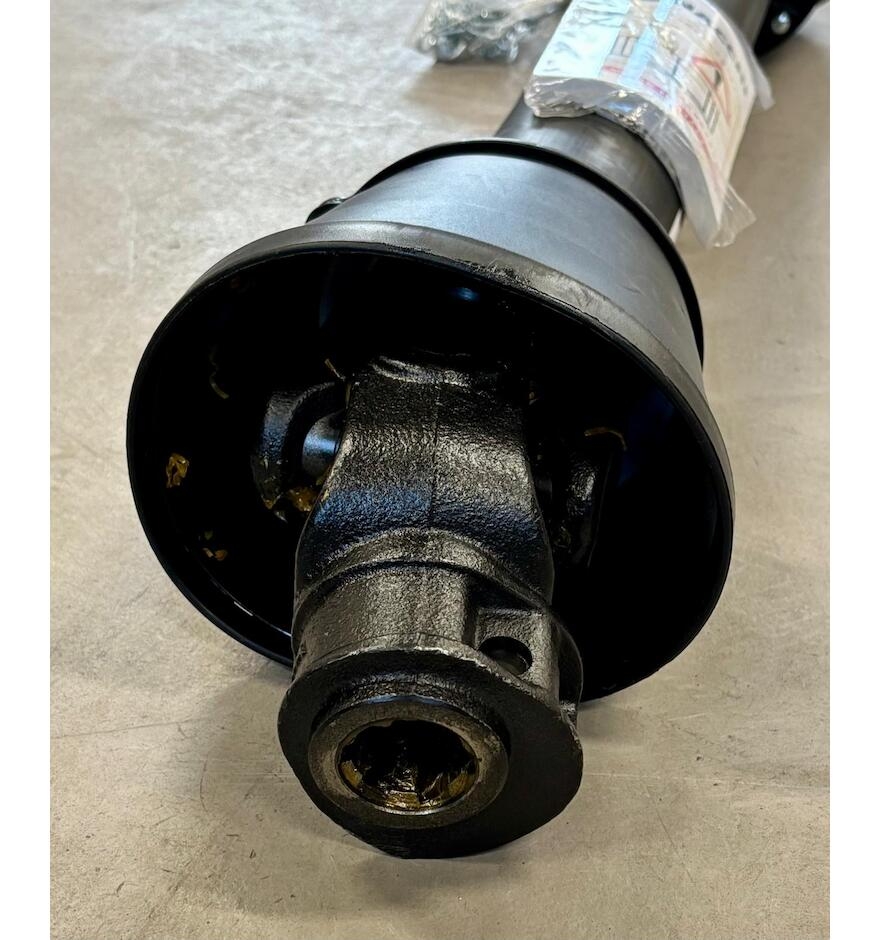

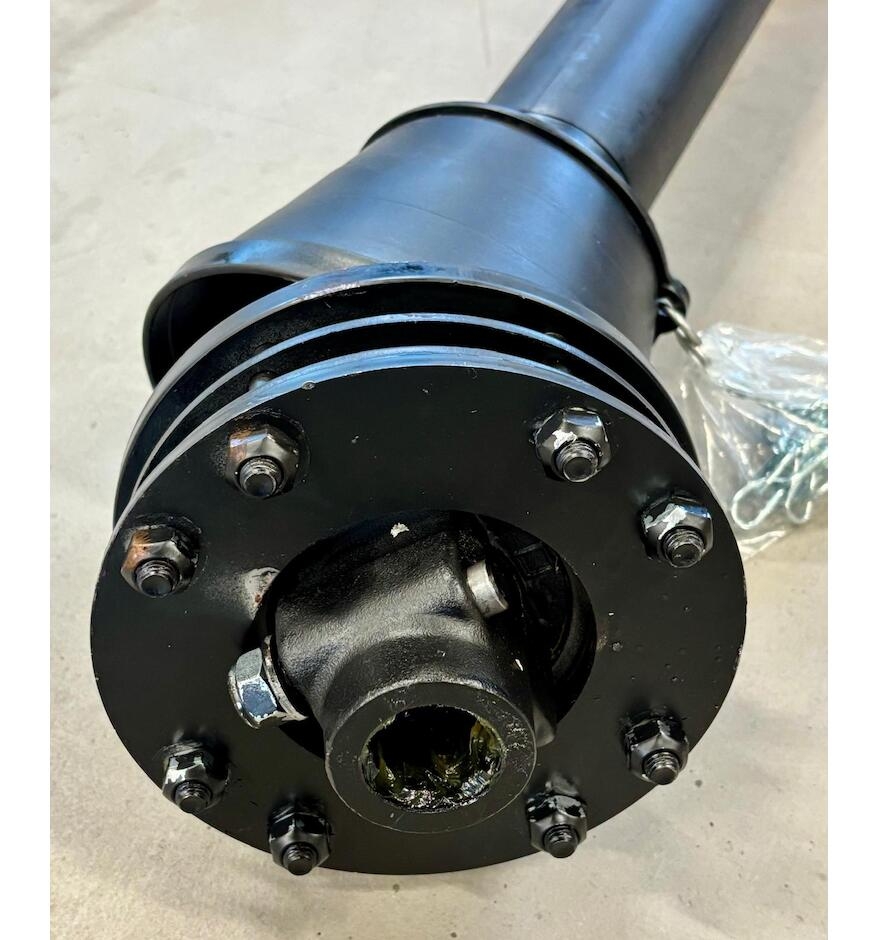

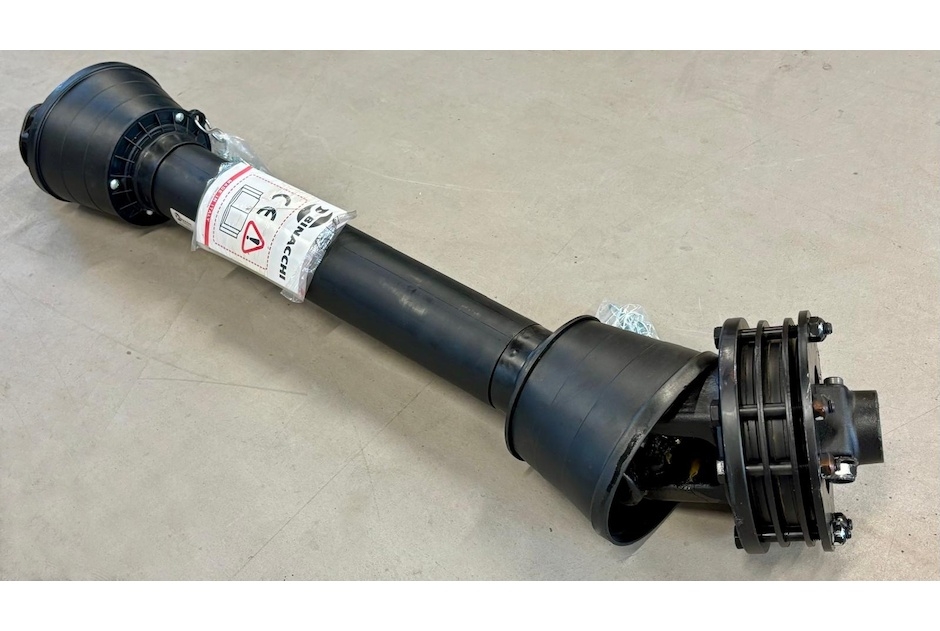

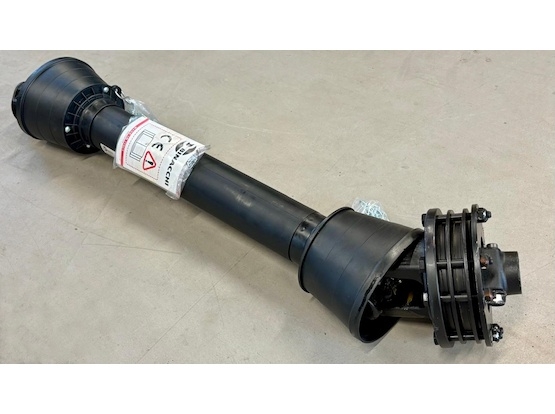

Cardan with friction overload clutch

It is suitable for TR110 and TR70 with flywheel.

For a TR70 without a flywheel is more suitable a cardan with ratchet overload clutch.

  • Category: Optional accessories
  • Model series:
  • Catalogues code:
  • Offered from:12.07.2016
  • Availability :on stock
Weight (kg): 24
Total length in the inserted possition: 100 cm
Grooving: 1"3/8 (35 mm) 6 grooves
Torque of the overload clutch: 1600 Nm
Type of overload clutch: Friction
Cardan size: 6
Suitable for logger: TR110, TR70
  • The overload clutch is set to a torque 1600 Nm.
  • The clutch starts to slip in case of overloading.
  • The clutch can be easily adjusted by pulling or releasing the springs.
  • The friction clutch must be adjusted more often compared to a clutch with latch.
